Display Digital Signage 55″ 4K UHD Android 11, HDMI/DP, Wi-Fi, SDM Slot, 24/7 – iiyama LH5575UHS
1.153,13 € incl. VAT
iiyama ProLite LH5575UHS-B2AG professional display, 55” 4K UHD, 500 cd/m², Android 11, iiSignage² and FailOver, 24/7, ideal for digital signage in retail, corporate, education and HoReCa.
Professional 55” 4K UHD Display, Android 11, 24/7, Digital Signage – iiyama ProLite LH5575UHS-B2AG
iiyama ProLite LH5575UHS-B2AG is a professional 55″ 4K UHD display, designed for 24/7 digital signage applications in critical environments – retail, corporate, transportation, education or HoReCa. The IPS screen with anti-glare glass (haze 25%) offers clear images and consistent colors from any angle, and the brightness of 500 cd/m² ensures excellent visibility in brightly lit spaces.
Thanks to the Android 11 operating system, you can directly install the applications you need, without an external media player. The integrated iiSignage² (CMS) platform allows you to centrally manage content, schedule campaigns and remotely control your entire fleet of displays, securely.
The FailOver function ensures continuous display of content: if the main source fails, the display automatically switches to the next available source (HDMI, DisplayPort, media player, browser, etc.), so that your messages always remain on the screen.

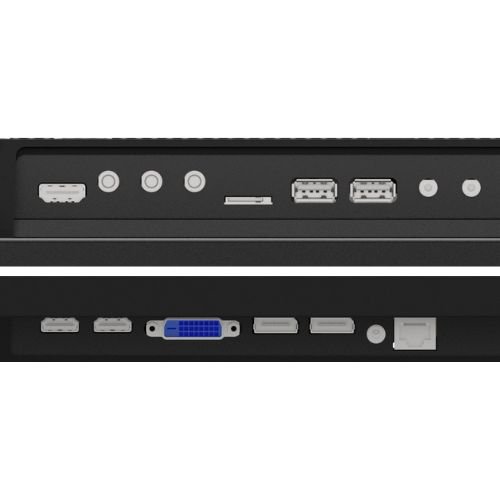

The Intel® SDM-L slot offers flexibility for integrating an embedded PC, and modern connectivity includes 3x HDMI, 1x DisplayPort (in), 1x DisplayPort (out with MST for daisy-chain), LAN, RS-232, USB and audio output. The integrated WiFi (802.11ac) simplifies integration into the existing network, without additional cables.
With the iiControl (DMS), iiShare and EShare applications, the display also becomes an ideal tool for meeting and education rooms, allowing wireless screen sharing from your laptop, tablet or phone, quickly and securely.
The robust construction with metal casing, narrow bezel design and the possibility of using in landscape or portrait mode make the ProLite LH5575UHS-B2AG a versatile solution for video walls, digital totems or information boards. Designed for 24/7 operation, with a fanless design and anti-image retention protection features, this model is designed for intensive, non-stop use.
Integrate it into your digital signage projects and benefit from a complete equipment: high-quality 4K image, Android platform, integrated CMS, extensive connectivity and remote control – all in one professional display.
Specifications technical
| Parameter | Value |
|---|---|
| Model | iiyama ProLite LH5575UHS-B2AG |
| Product type | LFD – Professional display for digital signage |
| Diagonal | 54.6″ / 139 cm |
| Native resolution | 3840 × 2160 @ 60Hz (4K UHD, 8.3 MegaPixels) |
| Aspect ratio | 16:9 |
| Panel type | IPS, anti-glare glass, 25% haze |
| Brightness | 500 cd/m² |
| Contrast static | 1200:1 |
| Response Time (GTG) | 8 ms |
| Viewing Angle | 178°/178° (89° left/right, 89° up/down) |
| Color Support | 1.07 billion (8-bit + FRC, NTSC 72%) |
| Viewable Area (W × H) | 1209.6 × 680.4 mm (47.6 × 26.8″) |
| Bezel width (left / top / bottom) | 14 mm / 14.75 mm / 14.75 mm |
| Bezel color and finish | Black, matte |
| Digital video inputs | 3 × HDMI 2.0 (max. 3840×2160 @60Hz, ARC on HDMI #3) |
| DisplayPort input | 1 × DisplayPort 1.2 (max. 3840×2160 @60Hz) |
| DisplayPort output | 1 × DisplayPort (max. 3840×2160 @60Hz, MST daisy-chain v1.2) |
| Monitor control – input | 1 × RS-232c (2.5 mm sub-mini jack), 1 × RJ45 (LAN), 1 × IR (3.5 mm) |
| Monitor control – output | 1 × RS-232c (2.5mm), 1 × IR loop-through (3.5mm) |
| Exit audio | 1 × 3.5 mm jack |
| Integrated speakers | 2 × 10 W |
| USB Ports | 2 × USB 2.0 |
| Integrated operating system | Android 11 OS |
| Integrated software | iiSignage², iiControl, iiShare, EShare, FailOver |
| Wireless connectivity | Integrated WiFi 802.11ac |
| Internal hardware | CPU: A311D2 Octa-core (A73×4 + A53×4), GPU: G52 MP8, RAM: 4 GB, ROM: 32 GB |
| Expansion slot | Intel® SDM-L, microSD slot |
| FailOver function | Yes, automatic switching between sources (incl. Browser, Media Player, Custom) |
| Media playback | Yes |
| Videowall / Daisy-chain | Yes, from any source, MST-out via DP-Out |
| Case construction | Metal |
| OSD languages | EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB |
| Physical buttons | Power (long press for Quick Menu) |

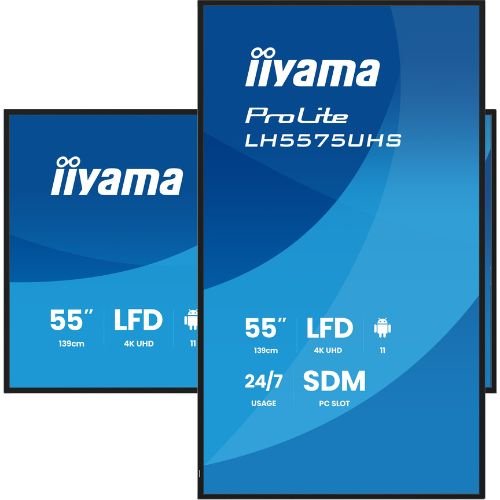

| Orientation | Landscape / Portrait |
| Fanless Design | Yes |
| Anti-image retention protection | Yes |
| Maximum operating time | 24/7, non-stop |
| VESA mount | 400 × 400 mm |
| Mini mount PC | VESA 75 × 75, VESA 100 × 100 |
| Operating temperature range | 0°C – 40°C |
| Storage temperature range | -20°C – 60°C |
| MTBF (excluding backlight) | 44,000 hours |
| Power supply | AC 100 – 240 V, 50/60 Hz |
| Power consumption | 127 W (typical), 0.5 W stand-by, 0.3 W off mode |
| Power supply | Internal |
| Energy efficiency class (EU 2017/1369) | G |
| Product dimensions (W × H × D) | 1237.5 × 710 × 55 mm |
| Package dimensions (W × H × D) | 1386 × 845 × 130 mm |
| Weight without packaging | 15.2 kg |
| Weight with packaging | 20.6 kg |
| HDCP standard | HDCP 2.2 |

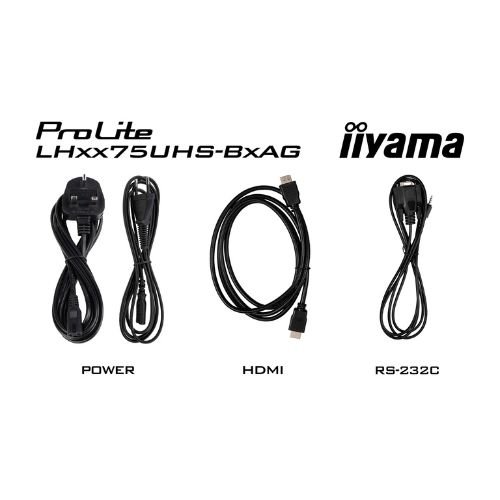

| Cables included | Power cable (1.8 m), HDMI (1.8 m), RS-232c (1.8 m) |
| Included Guides | Quick Start Guide, Safety Guide |
| Other Accessories | Screw Hole Stickers, Cable Clips |
| Remote Control | Yes, included (with batteries) |
| Plug & Play | DDC2B |
| Certifications | CB, CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH |
| EAN code | 4948570125258 |
