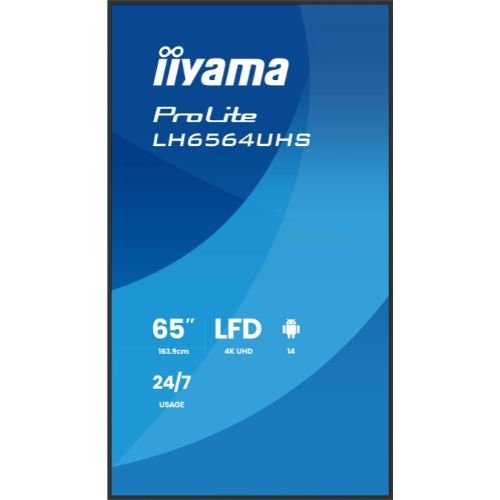

Digital Signage Display 65″ 4K UHD, Android 14, USB-C, Wi-Fi, 24/7 – iiyama LH6564UHS-B1AG
1.356,41 € incl. VAT
iiyama ProLite LH6564UHS-B1AG professional display, 65” 4K UHD, 500 cd/m², VA panel, Android 14, USB-C DP Alt Mode, iiSignage², WiFi and FailOver, 24/7 operation, ideal for digital signage in retail and corporate.
Professional Display 65″ 4K UHD, Android 14, USB-C, 24/7 Digital Signage – iiyama ProLite LH6564UHS-B1AG
iiyama ProLite LH6564UHS-B1AG is a professional display of 65″ 4K UHD, designed specifically for modern 24/7 digital signage projects. The display combines a high-definition image with an intelligent platform and advanced connectivity, so you can deliver dynamic, easy-to-manage and always up-to-date content, whether you use it in retail, corporate, hospitality or restaurants.
The VA panel with Anti-Glare glass, matte finish and 25% haze offers an impressive contrast of 5000:1 and a brightness of 500 cd/m², which means intense colors, deep blacks and very good visibility even in well-lit spaces. The 4K UHD (3840 x 2160) resolution highlights the smallest details – from fine text in digital menus to brand graphics or presentation videos.
On the inside, the display runs Android 14, so you have a true all-in-one player: you can directly install digital signage applications, media players or custom solutions, without an external media player. The integrated software package includes iiSignage² (CMS) for content management, iiControl (DMS) for remote display fleet management and monitoring, and iiShare / EShare for fast wireless presentations. The entire ecosystem is practically ready to use right out of the box.
A big advantage of the LH6564UHS-B1AG is its USB-C with DisplayPort Alt Mode and Power Delivery 15W connectivity. You can connect a laptop with a single cable – image, data and power – very useful in meeting rooms, training rooms or ad-hoc presentations. In addition, the 2 HDMI 2.0 inputs, LAN (RJ45), RS-232c, IR in/out and 2 x USB 2.0 ports give you maximum flexibility for integration into any AV or IT infrastructure.
The Signal FailOver function ensures that no “no signal” or black screen appears on the screen. If the main source fails, the display automatically switches to the next prioritized input (including Browser, Media Player or a custom source), ensuring continuous display of content. For information boards, shop windows or permanent advertising campaigns, this means zero pauses and zero unpleasant surprises.
The dual-band WiFi (2.4 / 5 GHz) module is integrated, so you can distribute content and updates via the network without additional cables. The built-in 2 x 10W speakers cover the audio for video spots, voice messages or multimedia presentations, without the need for external speakers in basic installations.
In terms of design, the LH6564UHS-B1AG comes with a slim frame of only 12.8 mm, a lightweight housing with a plastic bezel and a fanless construction (without a fan), which makes it discreet and quiet – ideal for lobbies, receptions, waiting areas or commercial spaces. It can be mounted in both landscape and portrait orientations, and the wall mounting kit (VESA 500 x 500 mm) is included in the package, for a quick and clean installation.
The display is designed for 24/7, non-stop operation, has anti image retention protection, a MTBF of 50,000 hours and typical consumption of 184 W, offering a good balance between performance, reliability and total cost of ownership. If you want a 65″ display with 4K, Android 14, USB-C and all the software tools you need right out of the box, the iiyama ProLite LH6564UHS-B1AG is a very powerful solution for serious digital signage projects.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | iiyama ProLite LH6564UHS-B1AG |
| Type product | LFD – Professional display for digital signage |
| Screen diagonal | 65″ / 164 cm |
| Native resolution | 3840 × 2160 @ 60Hz (4K UHD, 8.3 Megapixels) |
| Aspect ratio | 16:9 |
| Panel type | VA, Anti-Glare coated glass, matte finish, haze 25% |
| Panel Brightness | 500 cd/m² |
| Static Contrast | 5000:1 |
| Response Time (GTG) | 6.5 ms |
| Viewing Angle | 178°/178° (Right/Left 89°/89°, Up/Down 89°/89°) |
| Stand colors | 1.07 billion (8-bit + FRC), NTSC 72% |
| Horizontal frequency | 57 – 62 kHz |
| Viewable area (W × H) | 1428.5 × 803.5 mm, 56.2 × 31.6″ |
| Pixel pitch | 0.372 mm |
| Bezel width (left / top / bottom) | 12.8 mm / 12.8 mm / 12.8 mm |
| Bezel color and finish | Black, matte |
| Bezel material | Plastic |
| Digital video inputs | 2 × HDMI 2.0 (max. 3840 × 2160 @ 60Hz) |
| USB-C input | 1 × USB-C (DisplayPort Alt Mode, 15W Power Delivery) |
| USB Ports | 2 × USB 2.0 |
| Monitor control inputs | 1 × RS-232c (2.5 mm sub-mini jack), 1 × RJ45 (LAN), 1 × IR (3.5 mm) |
| Monitor control outputs | 1 × RS-232c (2.5mm), 1 × IR loop-through (3.5mm) |
| Audio output | 1 × mini jack 3.5 mm |
| Integrated speakers | 2 × 10 W |
| HDCP standard | HDCP 1.4 & 2.0 |
| Integrated operating system | Android 14 OS |
| Integrated software | iiSignage², iiControl, iiShare, EShare, FailOver, TeamViewer, PDF & Media Player, iiBrowser, File manager |
| Connectivity wireless | Built-in WiFi (2.4 / 5 GHz) |
| Internal hardware | CPU: ARM Cortex-A73 × 4; GPU: G52 MC1; RAM: 4 GB; ROM: 32 GB |
| FailOver function | Yes, automatic switching between sources (incl. Browser, Media Player, Custom) |
| Media playback | Yes |
| Orientation | Landscape / Portrait |
| Fanless design | Yes |
| Anti image retention protection | Yes |
| Maximum operating time | 24/7, non-stop |
| VESA mount | 500 × 500 mm (wall mount kit included) |
| Operating temperature | 0°C – 40°C |
| Storage Temperature | -20°C – 60°C |
| MTBF (excluding backlight) | 50,000 hours |
| Power | AC 100 – 240 V, 50/60 Hz |
| Power Supply | Internal |
| Power Consumption (Typical) | 184 W, 0.5 W stand-by, 0.3 W off mode |
| Energy efficiency class | G (Regulation (EU) 2017/1369) |
| Product dimensions (W × H × D) | 1457.7 × 832.4 × 68.8 mm |
| Packaging dimensions (W × H × D) | 1640 × 990 × 164 mm |
| Weight without packaging | 17.7 kg |
| Weight with packaging | 27.5 kg |
| Cables included | Power cable (1.8 m), HDMI cable (1.8 m), RS-232c cable (1.8 m) |
| Guides included | Quick Start Guide, Safety Guide |
| Other accessories | Wall mount, mounting guide, screws, dowels, hole stickers screws |
| Remote control | Yes, included (with batteries) |
| Certifications | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| EAN code | 4948570125326 |
