Datalogic DS6400 dynamic focus medium range scanner 931351095
6.133,49 € 5.520,14 € incl. VAT
Datalogic DS6400 931351095 – medium-range industrial scanner, FLASH™ dynamic focus, linear optics, Profibus, IP65, ideal for logistics and production.

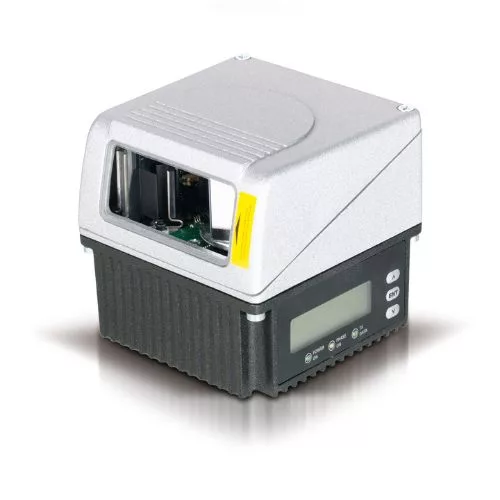

Datalogic DS6400 931351095 Medium Range Dynamic Focus Scanner
Datalogic DS6400 931351095 is a fixed industrial laser scanner designed for applications where it is necessary to read barcodes from variable distances, on production, sorting and logistics lines.
This model is equipped with FLASH™ Dynamic Focus technology, which allows rapid focus adjustment in less than 10 ms, covering a reading range between 300 and 2500 mm. The ACR4™ algorithm and advanced DIGITECH™ processing guarantee fast and accurate reading even of damaged, dirty or low-contrast codes.
The scanner integrates the Profibus interface, which makes it ideal for direct connection to complex industrial networks. ÎIn addition, it is equipped with robust aluminum housing, IP64/IP65 protection, vibration and shock resistance. Configuration is simple with the Genius™ software, and monitoring is facilitated by the LCD display and X-PRESS™ interface.
Technical specifications Datalogic DS6400 931351095
| Feature | Details |
|---|---|
| Product code | 931351095 |
| Scanner type | Industrial fixed, range average |
| Technology | Laser with FLASH™ Dynamic Focus, ACR4™, DIGITECH™ |
| Minimum resolution | 0.20 mm (8 mils) |
| Reading distance | 300 – 2500 mm (dynamic focus) |
| Scanning speed | 600 – 1200 scans/second (programmable) |
| Optical model | Linear |
| Connectivity | Profibus, RS232/RS485, RS232 auxiliary port |
| Advanced features | PACKTRACK™, Genius™ software, X-PRESS™, LCD display |
| Protection | IP64 (standard), IP65 optional |
| Operating temperature | 0°C to +40°C |
| Housing material | Aluminum |
| Dimensions | 110 x 113 x 99 mm |
| Weight | ~1.5 kg |
| Power supply | 15-30 V DC, consumption 15-20W |
👉 Datalogic DS6400 931351095 is the right choice for industrial applications connected to Profibus networks, where long-distance reading, flexibility and high reliability are needed.
