Cradle Kit 5 Terminals and 5 Batteries Zebra TC201 CRD-TCVTB-5D5B-1

Zebra CRD-TCVTB-5D5B-1 – ShareCradle kit for five TC201 terminals and five batteries

The Zebra CRD-TCVTB-5D5B-1 is a professional ShareCradle Charge-Only kit designed to simultaneously charge up to five Zebra TC201 mobile terminals with Rugged Boot mounted and five compatible backup batteries .

The solution offers ten charging positions in a single station: five locations for mobile terminals and five separate battery slots. It is recommended for companies managing fleets of devices in retail, warehouses, logistics, transportation, courier and field services.

The kit includes the Zebra PWR-BGA12V150W1WW power supply. The SG-TCVT-BOOT-01 Rugged Boots and the AC cable required to connect the power supply to the outlet are not included and must be ordered separately.

Main features

• simultaneous charging of up to five Zebra TC201 terminals;
• five separate slots for backup batteries;
• compatible with terminals that have Rugged Boot installed;
• up to ten components loaded in the same station;
• Charge-Only function, no data transfer;
• suitable for fleets and multi-shift operations;
• reduces terminal and battery preparation time;
• includes PWR-BGA12V150W1WW power supply;
• Rugged Boots and AC cable are sold separately.

Compatibility and configuration

Characteristic	Detail
Product code	CRD-TCVTB-5D5B-1
Accessory type	ShareCradle Charge-Only Kit
Compatible terminal	Zebra TC201
Terminal capacity	Up to 5 devices
Battery capacity	Up to 5 spare batteries
Rugged Boot	Terminals are inserted with Rugged Boot mounted
Data transfer	Not
Source included	PWR-BGA12V150W1WW
AC cable	Not included

Simultaneous charging of five terminals

The ShareCradle has five dedicated slots for Zebra TC201 terminals. Each device can be inserted into the cradle with the Rugged Boot installed, without removing the protective cover after each change.

This configuration contributes to:

• reducing the time required to hand over terminals;
• avoiding repeated assembly and disassembly of covers;
• keeping terminals protected at all times;
• organizing equipment in a single point;
• simultaneous charging of devices used by multiple operators;
• preparing the fleet for the next shift.

The compatible Rugged Boot is Zebra SG-TCVT-BOOT-01 and must be ordered separately for each terminal.

Five spare battery slots

In addition to the terminal positions, the CRD-TCVTB-5D5B-1 includes five separate slots for charging Zebra TC201 compatible backup batteries.

Batteries can be charged simultaneously with the terminals, providing a ready reserve for:

• long work shifts;
• operations carried out in two or three shifts;
• intensive scans throughout the day;
• permanent use of Wi-Fi or cellular networks;
• quick replacement of a discharged battery;
• preparing equipment for the next users.

The exact battery code must be checked before ordering to confirm compatibility with the cradle slots.

Solution for centralized fleet management

The CRD-TCVTB-5D5B-1 is recommended for charging points where terminals and batteries must be managed together. The station reduces the number of individual sources and simplifies equipment preparation before each shift.

It can be installed in:

• the back-office of stores;
• terminal drop-off and pick-up areas;
• warehouses and logistics centers;
• courier hubs;
• dispatch offices;
• technical rooms and secure areas;
• equipment points for field personnel.

Charge-Only function

The Zebra CRD-TCVTB-5D5B-1 is intended for terminal and battery charging only. It does not provide USB sync, data transfer, or Ethernet connectivity.

It is suitable when the main objective is:

• centralized fleet loading;
• preparing terminals between shifts;
• keeping backup batteries charged;
• reducing the number of individual adapters;
• avoiding connecting cables directly to each terminal;
• organizing equipment in a fixed point.

For Ethernet connectivity or data transfer, a ShareCradle variant that explicitly includes those functions must be selected.

Power supply included

The kit includes the Zebra PWR-BGA12V150W1WW power supply, sized to power the station with five terminal positions and five battery slots.

compound	Code or specification	Included
ShareCradle for 5 terminals and 5 batteries	CRD-TCVTB-5D5B-1	Yes
Power supply	PWR-BGA12V150W1WW	Yes
Rugged Boot	SG-TCVT-BOOT-01	Not
AC cable	Country-specific version	Not
TC201 terminals	Compatible configurations	Not
Backup batteries	Compatible models with Zebra TC201	Not

Difference from CRD-TCVTB-5D-1

Characteristic	CRD-TCVTB-5D5B-1	CRD-TCVTB-5D-1
TC201 terminals	Up to 5	Up to 5
Rugged Boot Terminals	Yes	Yes
Battery slots	5	Not
Function	Charge-Only	Charge-Only
Power supply PWR-BGA12V150W1WW	Included	Included
AC cable	Separated	Separated

Choose the CRD-TCVTB-5D5B-1 when your fleet requires simultaneous charging of terminals and backup batteries. For exclusive charging of five terminals, the CRD-TCVTB-5D-1 can be used.

Retail applications

• loading terminals used for inventory;
• preparing the batteries for the next rounds;
• back-office equipment management;
• loading devices for order preparation;
• maintaining a battery reserve for intensive operations.

Warehouse and logistics applications

• preparing terminals for picking and put-away;
• charging devices used for reception and shipping;
• multi-shift fleet management;
• centralized charging of backup batteries;
• reducing downtime.

Courier and transportation applications

• loading terminals after completing routes;
• preparing the batteries for the next race;
• organizing devices into logistics hubs;
• keeping Rugged Boots fitted;
• simultaneous preparation of equipment for several couriers.

Field service applications

• charging mobile team terminals;
• preparing batteries for interventions;
• centralized administration at headquarters;
• reducing the risk of leaving with a flat battery;
• keeping devices protected with Rugged Boot.

Installation and use

1. place the station on a stable and ventilated surface;
2. connect the included PWR-BGA12V150W1WW power supply;
3. connect the regionally compatible AC cable;
4. mount the SG-TCVT-BOOT-01 Rugged Boot on each terminal;
5. insert the terminals into the dedicated positions;
6. insert compatible batteries into the separate slots;
7. check the charging indicators;
8. avoids blocking ventilation and overloading the outlet.

The terminals and batteries must be positioned correctly, without forcing the contacts or charging cups.

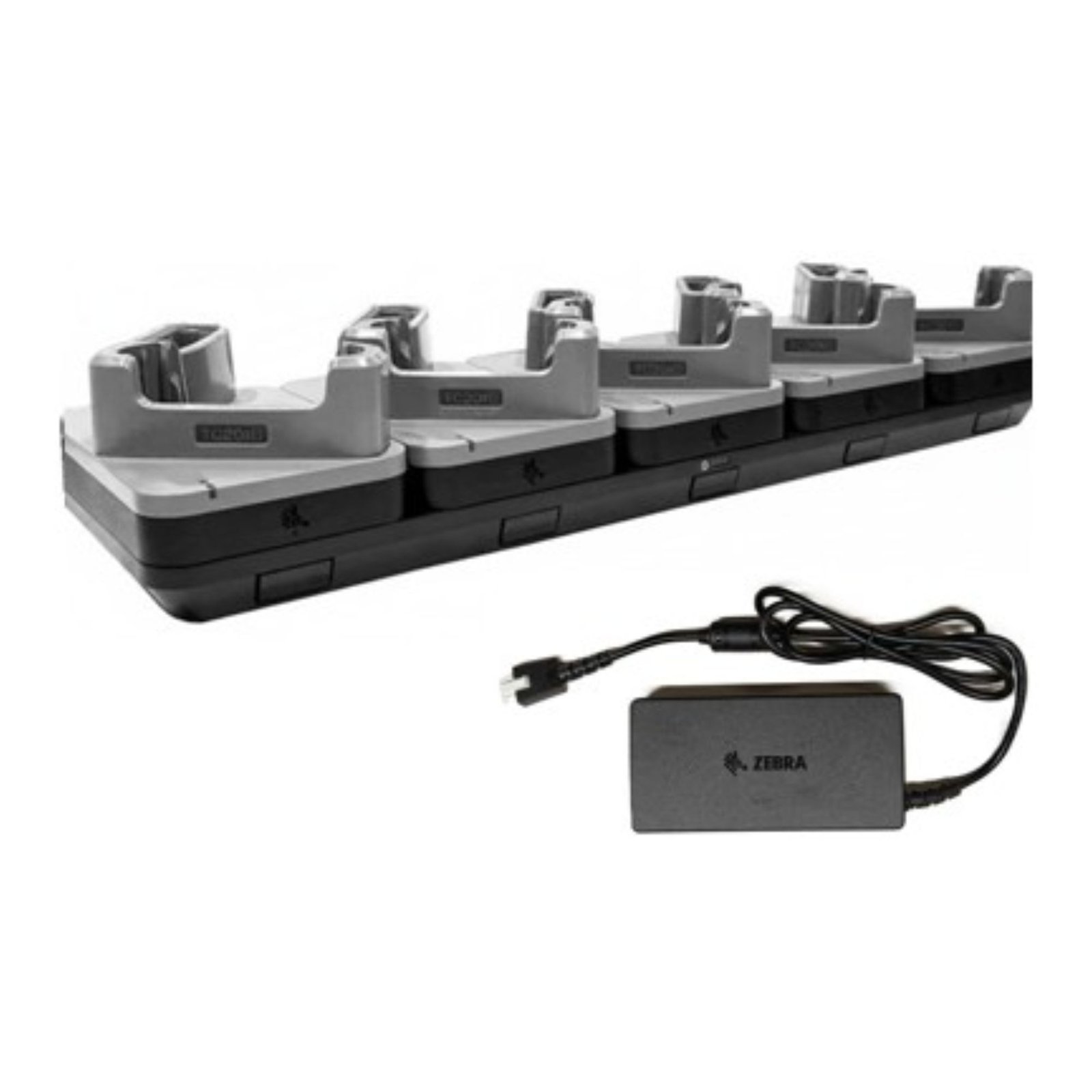

Kit contents

• 1 × ShareCradle Charge-Only for five TC201 terminals;
• 5 × integrated slots for backup batteries;
• 1 × Zebra PWR-BGA12V150W1WW power supply.

Zebra TC201 terminals, spare batteries, SG-TCVT-BOOT-01 Rugged Boots and AC cord are not included.

Frequently asked questions

1. How many terminals can CRD-TCVTB-5D5B-1 charge?

It can charge up to five Zebra TC201 terminals simultaneously.

2. How many batteries can be charged?

The station includes five separate slots for compatible backup batteries.

3. Can the terminals be inserted with the Rugged Boot mounted?

Yes. The positions are designed for TC201 terminals equipped with Rugged Boot.

4. Are Rugged Boots included?

No. SG-TCVT-BOOT-01 must be ordered separately for each terminal.

5. Is the power supply included?

Yes. The kit includes the Zebra PWR-BGA12V150W1WW power supply.

6. Is the AC cord included?

No. An AC cord compatible with the included power supply and the country of use is required.

7. Are terminals and batteries included?

No. TC201 terminals and compatible batteries are ordered separately.

8. Does the station offer data transfer?

No. It is a Charge-Only model, intended exclusively for charging.

9. What is the difference from CRD-TCVTB-5D-1?

CRD-TCVTB-5D5B-1 charges five terminals and five batteries. CRD-TCVTB-5D-1 charges only five terminals.

10. Is it compatible with Zebra TC101?

The information provided for this code indicates Zebra TC201. Compatibility with TC101 must be confirmed separately before pairing the product.

Order Zebra CRD-TCVTB-5D5B-1

The Zebra CRD-TCVTB-5D5B-1 is recommended for companies that manage fleets of TC201 terminals with Rugged Boot and need to simultaneously charge devices and backup batteries.

For a complete configuration, TC201 terminals, compatible batteries, one SG-TCVT-BOOT-01 Rugged Boot for each device, and a European AC cable compatible with the included power supply are required.
