Cradle Kit 10 Zebra TC201 Terminals without Rugged Boot CRD-TCVT-10D-1

Zebra CRD-TCVT-10D-1 – ShareCradle kit for ten TC201 terminals without Rugged Boot

The Zebra CRD-TCVT-10D-1 is a ShareCradle Charge-Only kit designed for simultaneous charging of up to ten Zebra TC201 mobile terminals used without Rugged Boot .

The station centralizes the charging of a fleet of terminals at a single point and is recommended for warehouses, logistics centers, stores, courier hubs, production facilities and service teams working in multiple shifts.

The kit includes the Zebra PWR-BGA12V150W1WW 150 W power supply. The AC cable required to connect the power supply to the electrical network is not included and must be selected according to the country of use.

Main features

• simultaneous charging of up to ten Zebra TC201 terminals;
• designed for terminals used without Rugged Boot;
• Charge-Only function, no data transfer;
• centralized charging for fleets of devices;
• suitable for operations carried out in multiple shifts;
• reduces the number of individual chargers;
• simplifies the handover and pickup of terminals;
• includes Zebra PWR-BGA12V150W1WW 150 W power supply;
• Regional AC cable sold separately.

Compatibility and configuration

Simultaneous charging of ten TC201 terminals

The CRD-TCVT-10D-1 allows up to ten Zebra TC201 terminals to be connected to a single charging point. This configuration is suitable for organizations that manage a larger fleet of devices and need to prepare them for the next shift simultaneously.

Using ShareCradle helps to:

• loading terminals at the end of the program;
• simultaneous preparation of devices for the following operators;
• organizing the fleet in a centralized area;
• reducing the number of individual cables and adapters;
• quick verification of returned terminals;
• simplifying handover and pick-up procedures;
• reducing the time required to prepare equipment.

Use without Rugged Boot

The ShareCradle positions are sized for Zebra TC201 terminals in the standard configuration, without Rugged Boot or other case that changes the dimensions of the device.

For correct use:

1. remove the Rugged Boot or additional case;
2. check that the terminal and charging contacts are clean;
3. insert the device into the available position;
4. check for correct alignment in the cradle;
5. confirms the start of the charging process.

Fleet management solution

With a capacity of up to ten devices, the CRD-TCVT-10D-1 is recommended for deployments where terminals are distributed to multiple operators or used in successive shifts.

The station can be installed in:

• terminal drop-off and pick-up areas;
• warehouses and logistics centers;
• the back-office of stores;
• courier and transportation hubs;
• distribution centers;
• technical areas or secure spaces;
• equipment points for field personnel.

Charge-Only function

The Zebra CRD-TCVT-10D-1 is intended for terminal charging only. The station does not provide data transfer, USB synchronization, or Ethernet connectivity.

It is recommended when the main objective is:

• centralized fleet loading;
• preparing devices between shifts;
• avoiding connecting cables directly to each terminal;
• reducing the number of individual sources;
• keeping terminals in a fixed and organized place;
• managing a fleet of up to ten devices.

For data transfer or Ethernet communication, a cradle variant must be selected that explicitly includes the respective functions.

Power supply included

The kit includes the Zebra PWR-BGA12V150W1WW 150 W power supply. A regionally compatible AC cable, sold separately, is required to connect the power supply to the electrical network.

The difference between CRD-TCVT-10D-1 and CRD-TCVT-10D

Choose CRD-TCVT-10D-1 when you need the kit that includes the 150 W power supply.

The CRD-TCVT-10D variant is suitable when the organization already owns a compatible PWR-BGA12V150W1WW power supply.

Difference from CRD-TCVTB-10D-1

CRD-TCVT-10D-1 is intended for terminals used without a case. For devices that keep the Rugged Boot mounted, CRD-TCVTB-10D-1 should be selected.

Recommended apps

Retail

• loading terminals used for inventory;
• preparing devices for replenishing shelves;
• back-office equipment management;
• loading terminals between shifts;
• preparing devices for online orders.

Warehouse and logistics

• loading terminals used for picking and put-away;
• preparing devices for reception and dispatch;
• multi-shift fleet management;
• organizing terminals in a centralized area;
• reducing downtime.

Courier and transportation

• loading terminals after completing routes;
• preparing devices for the next races;
• organizing equipment in logistics hubs;
• simultaneous loading of terminals of several couriers;
• simplifying the handover of devices between shifts.

Production and field services

• loading terminals used for traceability;
• preparing devices for the next shift;
• management of mobile team equipment;
• centralized fleet organization;
• reducing the number of individual chargers.

Installation and use

1. place the ShareCradle on a stable and ventilated surface;
2. connect the included PWR-BGA12V150W1WW power supply;
3. Connect the regional AC cable purchased separately;
4. remove the Rugged Boot from each terminal, if mounted;
5. insert the terminals into the dedicated positions;
6. check alignment and load indicators;
7. avoids blocking ventilation and overloading the electrical circuit.

The terminals must be inserted correctly, without forcing the cups or charging contacts.

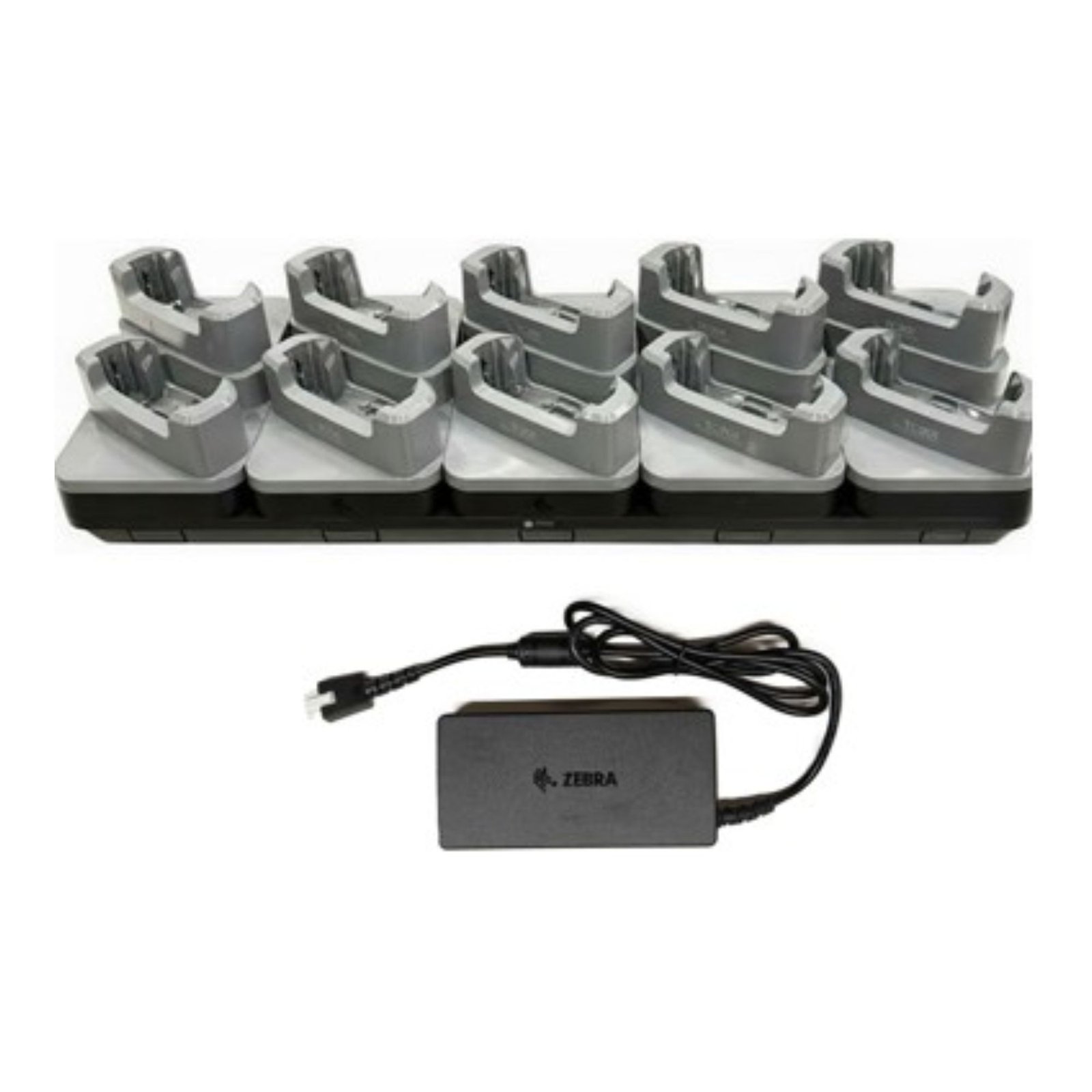

Kit contents

• 1 × ShareCradle Charge-Only Zebra CRD-TCVT-10D-1;
• 1 × Zebra PWR-BGA12V150W1WW 150W power supply.

Country-specific AC cord and Zebra TC201 terminals are not included.

Frequently asked questions

1. How many terminals can CRD-TCVT-10D-1 charge?

The kit can charge up to ten Zebra TC201 terminals simultaneously.

2. Can the terminals be charged with Rugged Boot mounted?

No. The station is designed for TC201 terminals used without Rugged Boot.

3. Is the power supply included?

Yes. The kit includes the Zebra PWR-BGA12V150W1WW 150W power supply.

4. Is the AC cord included?

No. An AC cord compatible with the included power supply and the country of use is required.

5. Does the ShareCradle offer data transfer?

No. It is a Charge-Only model intended exclusively for charging.

6. Does it include slots for spare batteries?

The product description mentions charging up to ten terminals and does not specify separate battery slots.

7. Are TC201 terminals included?

No. Mobile terminals are sold separately.

8. Can it be used with less than ten terminals?

Yes. The station can also be used when only some of the available positions are occupied.

9. What is the difference from CRD-TCVT-10D?

The CRD-TCVT-10D-1 includes the PWR-BGA12V150W1WW power supply. The CRD-TCVT-10D variant is sold without this power supply.

10. Is it compatible with Zebra TC101?

The description provided for this code is specific to Zebra TC201 terminals. Compatibility with TC101 must be confirmed separately before pairing the product.

Order Zebra CRD-TCVT-10D-1

The Zebra CRD-TCVT-10D-1 is recommended for organizations managing fleets of up to ten TC201 terminals without Rugged Boot and need a complete solution for centralized charging.

An additional regional AC cable compatible with the included 150 W power supply is required for use.
