Cradle Charging 2 Zebra TC201 Terminals with Rugged Boot CRD-TCVTB-2D

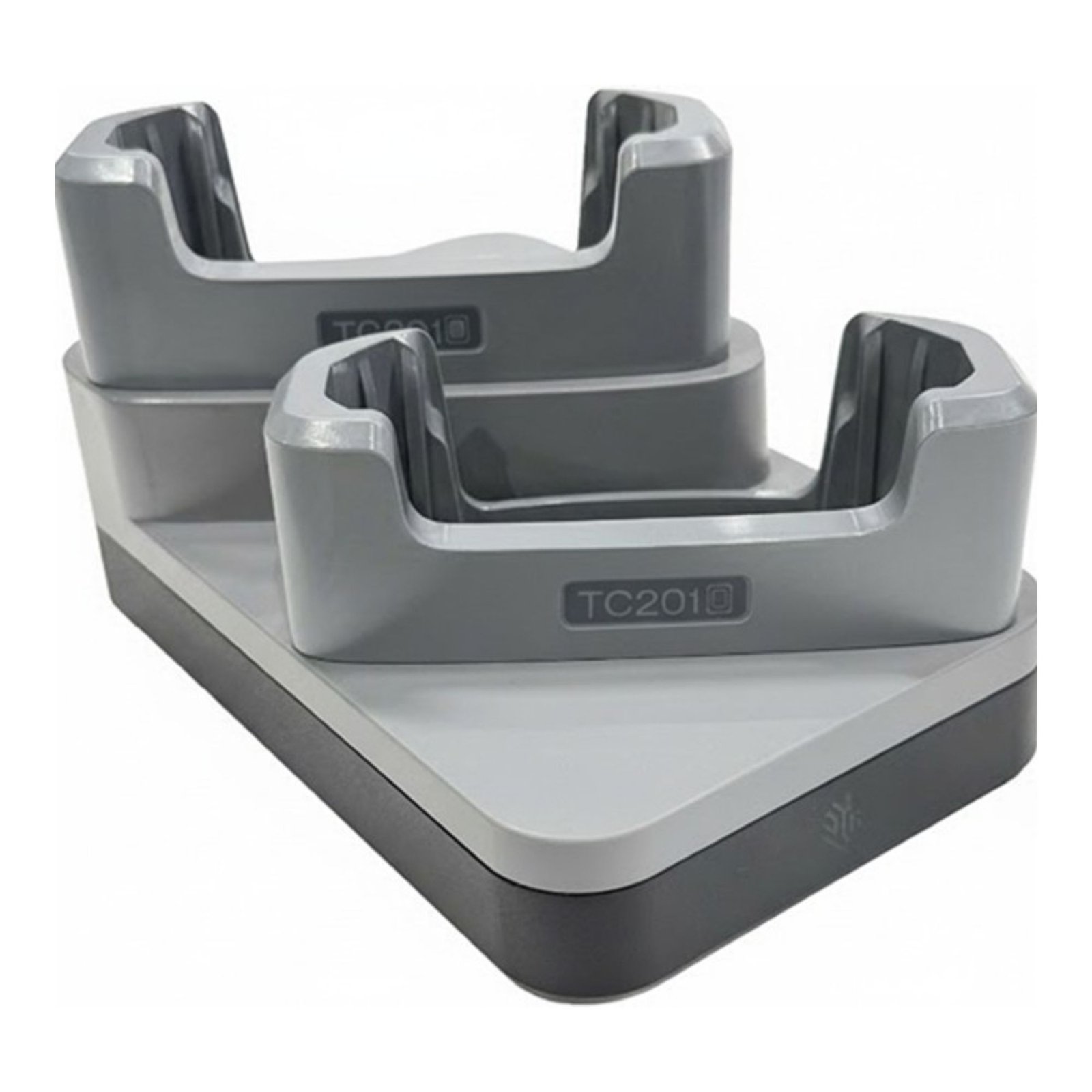

Zebra CRD-TCVTB-2D – cradle for two TC201 terminals with Rugged Boot

The Zebra CRD-TCVTB-2D is a Charge-Only ShareCradle designed for simultaneous charging of up to two Zebra TC201 mobile terminals with Rugged Boot mounted .

The station offers two individual charging positions and is recommended for workstations where two operators use TC201 terminals or where simultaneous preparation of an active device and a backup terminal is required.

The cradle’s shape allows the insertion of terminals with Rugged Boot protection installed, eliminating the need to remove the case before each charge.

Main features

• simultaneous charging of up to two Zebra TC201 terminals;
• two individual device positions;
• compatible with terminals that have Rugged Boot installed;
• does not require removing the cover before charging;
• Charge-Only function, no data transfer;
• suitable for desks, counters and workstations;
• simplifies the handover of terminals between shifts;
• reduces connecting cables directly to devices;
• USB-C cable and 45W adapter must be ordered separately.

Compatibility and configuration

Characteristic	Detail
Product code	CRD-TCVTB-2D
Accessory type	ShareCradle Charge-Only
Compatible terminal	Zebra TC201
Capacity	Up to 2 terminals
Use with Rugged Boot	Yes
Separate battery slots	Not specified
Data transfer	Not
Cable required	CBL-EC5X-USBC3A-01, sold separately
Required power supply	Country-specific 45W power adapter

Simultaneous charging of two TC201 terminals

The CRD-TCVTB-2D allows two terminals to be charged at a single point. The configuration is suitable for small teams, individual workstations, or deployments where a backup device must be kept ready at all times.

Using the cradle helps to:

• simultaneous charging of two terminals;
• preparing devices for the next shift;
• organizing equipment in a fixed point;
• reducing the number of cables connected directly to the terminals;
• simplifying the handover and pickup of devices;
• maintaining a charged backup terminal.

Use with Rugged Boot mounted

The ShareCradle positions are sized for TC201 terminals equipped with Rugged Boot. Devices can be inserted directly into the station without removing the protection.

This configuration offers the following advantages:

• reduces the time required to connect the terminal to charging;
• avoids repeated disassembly and reassembly of the cover;
• reduces wear on the Rugged Boot;
• keeps terminals protected between uses;
• reduces the risk of losing protective covers;
• standardizes the configuration of devices used by operators.

The compatible Rugged Boot is Zebra SG-TCVT-BOOT-01 and must be ordered separately for each terminal.

Charge-Only function

The Zebra CRD-TCVTB-2D is intended for terminal charging only. The ShareCradle does not provide data transfer, USB sync, or Ethernet connectivity.

It is recommended when the main objective is:

• charging two terminals at a single point;
• preparing devices between shifts;
• avoiding connecting cables directly to each terminal;
• keeping equipment in an organized position;
• keeping Rugged Boots fitted;
• reducing the number of individual chargers.

For data transfer or Ethernet communication, a cradle must be selected that explicitly includes the respective functions.

Accessories required for operation

compound	Code or specification	Included
ShareCradle for two terminals	CRD-TCVTB-2D	Yes
Rugged Boot	SG-TCVT-BOOT-01	Not
USB-C cable	CBL-EC5X-USBC3A-01	Not
Power adapter	45W Zebra adapter	Not
Regional food version	Compatible with the country of use	Not
Zebra TC201 terminals	Compatible configurations	Not

For use in Romania, the 45 W power adapter in the version compatible with European sockets must be selected.

The difference between CRD-TCVTB-2D and CRD-TCVTB-1D

Characteristic	CRD-TCVTB-2D	CRD-TCVTB-1D
Compatible terminal	Zebra TC201	Zebra TC201
Capacity	Up to 2 terminals	1 terminal
Terminal configuration	With Rugged Boot	With Rugged Boot
Separate battery slot	Not specified	Not
Data transfer	Not	Not
feeding	USB-C cable and 45W adapter, separate	USB-C cable and 45W adapter, separate

Choose CRD-TCVTB-2D when two TC201 terminals with Rugged Boot need to be charged simultaneously.

For a single device, CRD-TCVTB-1D can be used.

Difference from CRD-TCVTB-1D1B

Characteristic	CRD-TCVTB-2D	CRD-TCVTB-1D1B
Loaded terminals	Up to 2	1
Charged backup batteries	Not specified	1
Use with Rugged Boot	Yes	Yes
Function	Charge-Only	Charge-Only

CRD-TCVTB-2D is the right choice for charging two complete terminals. For charging one terminal and a backup battery, CRD-TCVTB-1D1B should be selected.

Recommended apps

Retail

• loading terminals used for inventory;
• preparing devices for replenishing shelves;
• back-office terminal administration;
• loading equipment between shifts;
• keeping a backup device ready.

Warehouse and logistics

• loading terminals used for picking and receiving;
• placing the cradle at the operators’ station;
• preparing equipment for the next shift;
• keeping Rugged Boots fitted;
• organizing devices in a centralized point.

Courier and transportation

• loading terminals after completing routes;
• preparing devices for the next races;
• organizing equipment in a logistics hub;
• simultaneous loading of terminals of two couriers;
• reducing the time required to hand over devices.

Field services

• loading the terminals of two technicians;
• preparing equipment for the following interventions;
• keeping devices protected;
• reducing the risk of leaving with a flat battery;
• organization of terminals at headquarters.

Installation and use

1. place the ShareCradle on a stable and ventilated surface;
2. connect the Zebra USB-C cable CBL-EC5X-USBC3A-01;
3. Connect the 45W power adapter;
4. mount the SG-TCVT-BOOT-01 Rugged Boot on each terminal;
5. insert the devices into the dedicated positions;
6. check alignment and load indicators.

The terminals must be positioned correctly, without forcing the cups or charging contacts. The station must be used in a space protected from liquids, excessive dust and extreme temperatures.

Package contents

• 1 × ShareCradle Charge-Only Zebra CRD-TCVTB-2D.

Zebra TC201 terminals, SG-TCVT-BOOT-01 Rugged Boots, CBL-EC5X-USBC3A-01 USB-C cable, and 45W power adapter are not included.

Frequently asked questions

1. How many terminals can CRD-TCVTB-2D charge?

The ShareCradle can charge up to two Zebra TC201 terminals simultaneously.

2. Can the terminals be charged with Rugged Boot mounted?

Yes. The station is designed for TC201 terminals that have Rugged Boot installed.

3. Are Rugged Boots included?

No. The compatible Rugged Boot must be ordered separately for each terminal.

4. Does the ShareCradle offer data transfer?

No. It is a Charge-Only model intended exclusively for charging.

5. Does it include slots for spare batteries?

The product description specifies charging up to two terminals and does not mention separate battery slots.

6. Is the USB-C cable included?

No. Zebra CBL-EC5X-USBC3A-01 cable required, sold separately.

7. Is the power adapter included?

No. A 45W power adapter in the version appropriate for the country of use is required.

8. Are TC201 terminals included?

No. Mobile terminals are sold separately.

9. Can it be used for a single terminal?

Yes. The station can also be used when only one of the two positions is occupied.

10. Is it compatible with Zebra TC101?

The description provided for this code is specific to Zebra TC201 terminals. Compatibility with TC101 must be confirmed separately before pairing the product.

Order Zebra CRD-TCVTB-2D

The Zebra CRD-TCVTB-2D is recommended for companies that use two TC201 terminals with Rugged Boot and need a common, organized and compact point for charging devices.

A complete configuration requires TC201 terminals, one SG-TCVT-BOOT-01 Rugged Boot for each device, CBL-EC5X-USBC3A-01 cable, and Zebra 45W adapter for Europe.
