Cradle Charging 10 Zebra TC201 Terminals CRD-TCVT-10D

Zebra CRD-TCVT-10D – ShareCradle for ten TC201 terminals without Rugged Boot

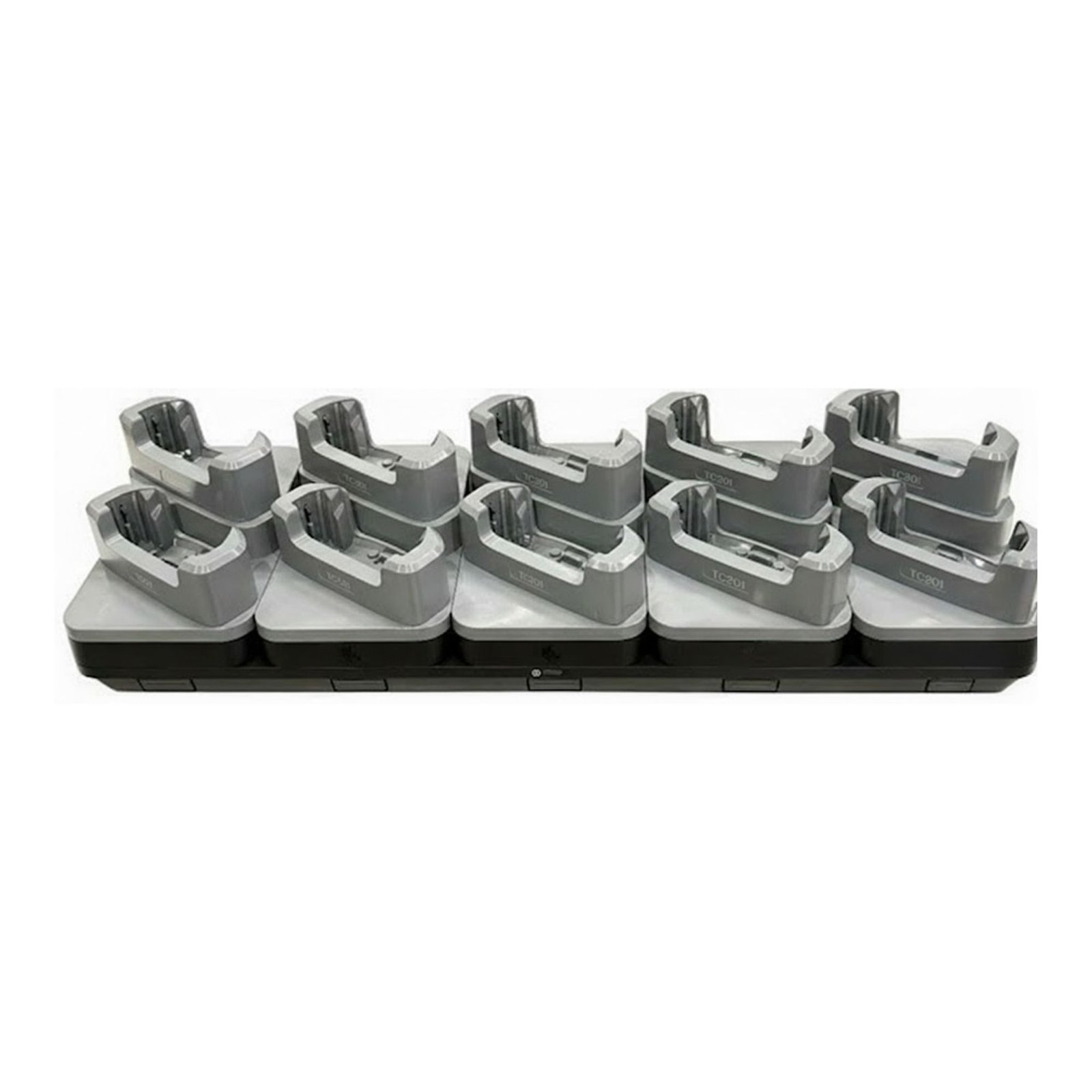

The Zebra CRD-TCVT-10D is a ShareCradle Charge-Only station designed for simultaneous charging of up to ten Zebra TC201 mobile terminals without Rugged Boot .

The ten individual positions allow for centralized management of a larger fleet of terminals, reducing the number of individual chargers and simplifying device preparation before each shift.

The station is recommended for retail, warehouses, logistics, courier, transportation and field services, where multiple operators use TC201 terminals in successive shifts.

Main features

• simultaneous charging of up to ten Zebra TC201 terminals;
• ten individual device positions;
• compatible with terminals used without Rugged Boot;
• Charge-Only function, no data transfer;
• centralized charging for large fleets;
• suitable for operations carried out in multiple shifts;
• reduces the number of individual chargers and adapters;
• simplifies the handover and pickup of equipment;
• 150 W power supply is ordered separately;
• Regional AC cable is not included.

Compatibility and configuration

Characteristic	Detail
Product code	CRD-TCVT-10D
Accessory type	ShareCradle Charge-Only
Compatible terminal	Zebra TC201
Capacity	Up to 10 terminals
Use with Rugged Boot	Not
Separate battery slots	Not
Data transfer	Not
Source required	PWR-BGA12V150W1WW, 150W
Source included	Not
AC cable included	Not

Simultaneous charging of ten terminals

The CRD-TCVT-10D allows up to ten TC201 terminals to be connected to the same charging point. Devices can be simultaneously prepared for the next shift, without the need for an individual adapter for each terminal.

The station helps to:

• loading terminals at the end of the shift;
• simultaneous preparation of devices for the following operators;
• organizing the fleet in a centralized point;
• reducing the number of cables connected directly to the terminals;
• rapid verification of returned equipment;
• management of terminals used in two or three shifts;
• reducing the time required to prepare the fleet.

Use without Rugged Boot

The ShareCradle positions are sized for TC201 terminals in the standard configuration, without the Rugged Boot case mounted.

To properly charge the terminal:

1. remove the Rugged Boot or any additional cover;
2. check that the terminal and charging contacts are clean;
3. insert the device into the available position;
4. check the correct fixation in the cradle;
5. confirm the appearance of the charging indicator.

Charge-Only function

The Zebra CRD-TCVT-10D is intended for terminal charging only. The station does not provide data transfer, USB synchronization, or Ethernet connectivity.

It is recommended when the main objective is:

• centralized charging of terminals;
• preparing devices between shifts;
• keeping terminals in a fixed and organized place;
• avoiding connecting cables directly to each device;
• reducing the number of individual sources;
• management of a fleet of up to ten terminals.

For data transfer or Ethernet connectivity, a ShareCradle that explicitly includes those functions must be selected.

Power supply sold separately

The Zebra PWR-BGA12V150W1WW 150 W power supply is required to operate the station. The power supply is not included in the CRD-TCVT-10D configuration and must be ordered separately.

An AC cable compatible with the source and sockets in the country where the equipment will be installed is also required.

compound	Code or specification	Included
ShareCradle with ten positions	CRD-TCVT-10D	Yes
150W power supply	PWR-BGA12V150W1WW	Not
AC cable	Country-specific version	Not
Zebra TC201 terminals	Compatible configurations	Not

The difference between CRD-TCVT-10D and CRD-TCVT-5D

Characteristic	CRD-TCVT-10D	CRD-TCVT-5D
Terminal capacity	Up to 10	Up to 5
Use with Rugged Boot	Not	Not
Battery slots	Not	Not
Function	Charge-Only	Charge-Only
Source included	Not	Not
AC cable included	Not	Not

Choose CRD-TCVT-10D for fleets of up to ten terminals and centralized charging points with a larger number of users.

For smaller fleets, up to five terminals, the CRD-TCVT-5D can be used.

Retail applications

• loading terminals used for inventory;
• preparing devices for replenishing shelves;
• back-office terminal administration;
• charging devices between employee shifts;
• preparing equipment for online orders.

Warehouse and logistics applications

• loading terminals used for picking and put-away;
• preparing devices for reception and dispatch;
• multi-shift fleet management;
• organizing terminals in a centralized area;
• reducing downtime.

Courier and transportation applications

• loading terminals after completing routes;
• preparing devices for the next race;
• organizing terminals into logistics hubs;
• simultaneous loading of equipment of several couriers;
• simplifying the handover of terminals between shifts.

Field service applications

• charging mobile team terminals;
• preparation of devices for interventions;
• centralized administration at headquarters;
• reducing the risk of leaving with a flat battery;
• organizing equipment after completion of work.

Installation and use

1. place the ShareCradle on a stable and ventilated surface;
2. connect the PWR-BGA12V150W1WW power supply purchased separately;
3. connect the regionally compatible AC cable;
4. remove Rugged Boot from each terminal;
5. insert the devices into the dedicated positions;
6. check alignment and load indicators;
7. avoids blocking ventilation and overloading the electrical circuit.

The station must be installed in an area protected from liquids, excessive dust, mechanical shock, and extreme temperatures.

Package contents

• 1 × ShareCradle Charge-Only Zebra CRD-TCVT-10D;
• 10 × integrated positions for Zebra TC201 mobile terminals.

The PWR-BGA12V150W1WW power supply, AC cable and Zebra TC201 terminals are not included.

Frequently asked questions

1. How many terminals can CRD-TCVT-10D charge?

The station can simultaneously charge up to ten Zebra TC201 mobile terminals.

2. Can the terminals be charged with Rugged Boot mounted?

No. CRD-TCVT-10D is designed for terminals used without Rugged Boot.

3. Does the ShareCradle offer data transfer?

No. It is a Charge-Only model intended exclusively for charging.

4. Does it include slots for spare batteries?

No. This model only charges complete terminals.

5. Is the power supply included?

No. The Zebra PWR-BGA12V150W1WW 150W power supply must be ordered separately.

6. Is the AC cord included?

No. An AC cord compatible with the source and country of use is required.

7. Are TC201 terminals included?

No. Terminals are sold separately.

8. Can it be used with less than ten terminals?

Yes. The station can also be used when only some of the ten positions are occupied.

9. What is the difference from CRD-TCVT-5D?

The CRD-TCVT-10D can charge up to ten terminals, and the CRD-TCVT-5D can charge up to five.

10. Is it compatible with Zebra TC101?

The description provided for this code specifies Zebra TC201 terminals. Compatibility with TC101 must be confirmed before pairing the product.

Order Zebra CRD-TCVT-10D

The Zebra CRD-TCVT-10D is recommended for organizations that manage fleets of up to ten TC201 terminals without Rugged Boot and need a centralized solution for charging devices between shifts.

A functional configuration requires the Zebra PWR-BGA12V150W1WW 150W power supply and a compatible European AC cord.
