Carl Valentin Flexicode 53/12 left printing module – 9079150
5.005,77 € 3.518,01 € incl. VAT
Flexicode 53/12 left printing module 9079150, 300 dpi, print width 53 mm, up to 400 mm/s, direct printing on film for packaging lines.
Carl Valentin Flexicode 53/12 left printing module – 9079150

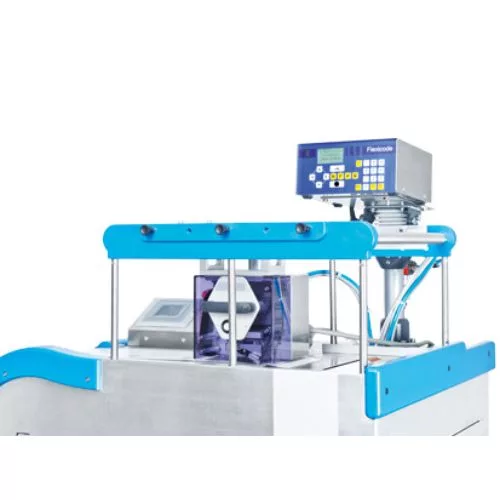

Direct printing module Carl Valentin Flexicode 53/12 left – 9079150 is an industrial printhead for direct printing on packaging film, by thermal transfer, ideal for flow-pack, HFFS and VFFS packaging lines.
This model has left orientation, which means that it is designed for integration on the left side of the packaging machine, depending on the film flow direction and the mechanical construction of the equipment.
With 300 dpi resolution, printing width up to 53 mm and working speed up to ~400 mm/s, Flexicode 53/12 The left side ensures clear and precise printing of:
production date and expiration date,
batch / line / shift number,
internal codes or 1D/2D barcodes,
logo and short product texts.
It is a robust solution for industrial applications where it is desired to replace mechanical dies and clichés with a flexible, programmable solution, easily updated from the PC or directly from the control unit.
Advantages main
Left orientation
Perfect for lines where the machine geometry requires the printing module to be mounted on the left side of the film.High print quality – 300 dpi
Small texts, symbols and barcodes are clear and easy to read/scan.Print width 53 mm
Ideal for variable data, barcodes and compact logos on envelopes, bags or foils.Print speed up to 400 mm/s
The module keeps up with fast packaging lines without compromising on quality.Easy integration into existing lines
The separate electronics unit and standard interfaces (RS-232, USB, Ethernet, parallel, USB Host) allow easy integration with PLCs and control systems existing.Optimum operating cost
Uses long-length (up to ~450 m) thermal transfer ribbons, reducing changeover stops and downtime.
Recommended applications
Food industry – snacks, bakery products, coffee, spices, refrigerated or frozen products.
Cosmetics & pharmaceuticals – marking of the batch, expiration date and traceability codes on the foil.
Industrial products packaged in foil – internal codes, product identification, conformity markings, logo.
Technical specifications – Flexicode 53/12 left 9079150
| Feature | Specification |
|---|---|
| Product code | 9079150 |
| Name | Printing mode Carl Valentin Flexicode 53/12 left |
| Head orientation print | Left (stânga) |
| Application type | Direct printing on packaging film (flow-pack, HFFS, VFFS) |
| Printing technology | Thermal transfer |
| Print resolution | 300 dpi |
| Maximum printing width | up to 53 mm |
| Printing speed | approx. 50 … 300/400 mm/s (îdepending on settings and application) |
| Working modes | Continuous mode and intermittent mode |
| Maximum print length – intermittent | up to ~40 mm |
| Maximum print length – continuous | up to ~3000 mm |
| Print head type | Corner Type, optimized for foil printing |
| Ribbon type | Thermal transfer ribbon, inside / outside ink (depending on ribbon) |
| Maximum ribbon width | up to ~55 mm |
| Maximum length ribbon | up to ~450 m |
| Maximum ribbon roll diameter | approx. 82 mm |
| Ribbon core diameter | 25.4 mm (1″) |
| Mechanism dimensions (L × H × A) | approx. 190 × 180 × 208 mm (without frame) |
| Electronic unit dimensions | approx. 242 × 117 × 220 mm |
| Weight mechanism | ~6.0 kg |
| Weight of electronic unit (with cables) | ~3.7 kg |
| Processor | High Speed 32-bit |
| RAM memory | 16 MB |
| Layout storage | Slot Compact Flash Card Type I |
| Signaling acoustic | Error beep |
| Communication interfaces | RS-232C, parallel SPP, USB 2.0 High Speed, Ethernet 10/100, 2× USB Host |
| Pneumatic connection | 6 bar, clean, dry, oil-free air |
| Typical air consumption | ~150 ml/min (depending on application and work rate) |
| Power supply electrical | 200–240 V AC, 50/60 Hz (optional 100–120 V AC) |
| Fuses | 2 × T4A 250 V |
| Operating temperature | approx. +5 … +40 °C |
| Permissible relative humidity | up to 80 % (without condense) |
| Fonts & Graphics | Bitmap and vector fonts, logos, symbols, simple graphics |
| Barcodes | 1D and 2D codes (e.g.: EAN, Code 128, DataMatrix, QR – î depending on layout) |
| Compatible software | Labelstar Office / LITE, Loftware, Windows drivers |
