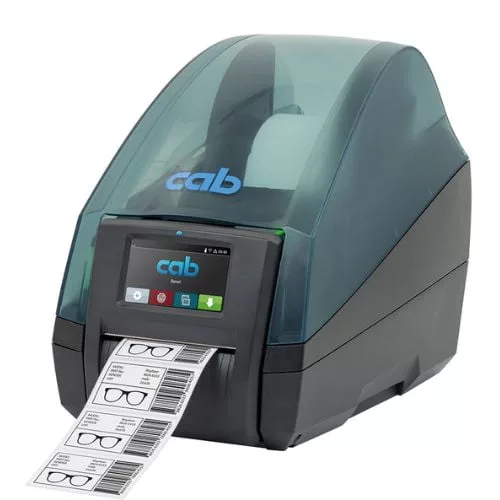

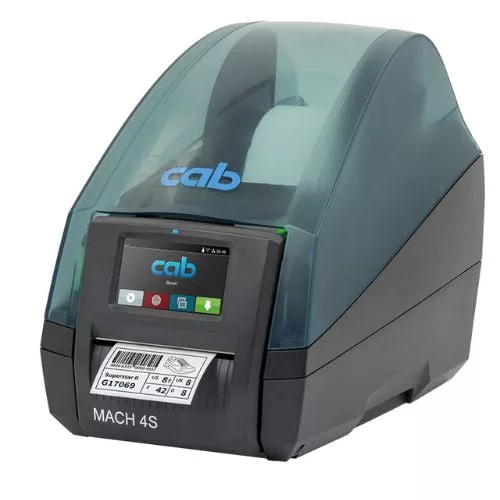

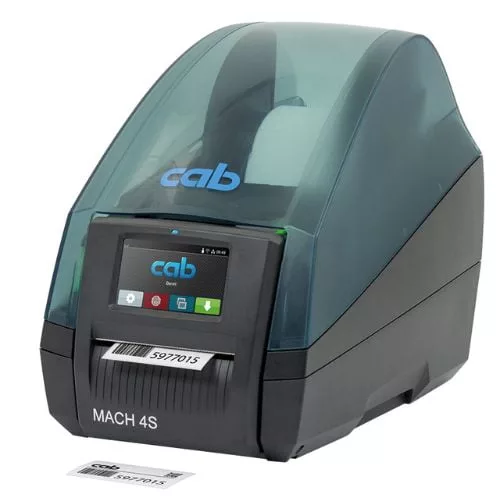

CAB MACH4/4S Label Printer

The CAB MACH 4 / 4S series represents the new generation of industrial printers Made in Germany, designed for precise, fast and reliable labeling. With a robust and compact design, high-quality components and an intuitive 4.3″ color display, these printers offer industrial performance in an ergonomic desktop format.

Available in 203, 300 and 600 dpi versions, the CAB MACH 4S printers cover a wide range of applications, from product labels and fine barcodes to industrial markings and pallet labels.

Thanks to the dual printing technology (TT and DT), these printers can work with various materials – paper, cardboard, plastic, textiles or heat-shrinkable tubes – providing impeccable results at speeds of up to 300 mm/s.

⚙️ CAB MACH 4 / 4S General Technical Specifications

Feature	Specification
Printing Method	Thermal Transfer (TT) / Direct Thermal (DT)
Available Resolutions	203 / 300 / 600 dpi
Maximum Print Speed	300 mm/s (203/300 dpi) • 150 mm/s (600 dpi)
Maximum Print Width	105.7 mm (4.25″)
Supported media width	5 – 116 mm
Maximum print length	up to 1727 mm (203 dpi) / 762 mm (300 dpi)
Media types	Paper, cardboard, PET, PP, PVC, Tyvek, textiles, heat-shrinkable tubes
Ribbon	360 m • Ø 72 mm • width 25-114 mm
Standard interfaces	USB 2.0, RS232, Ethernet 10/100, 2x USB Host, SD Card
Display	Touch color LCD 4.3″, 480×272 px
RAM/Flash memory	256 MB RAM / 50 MB Flash
Included software	cablabel S3 Lite, Windows/Mac/Linux drivers
Dimensions (L×H×A)	240 × 317 × 435 mm
Weight	6 kg
Certifications	CE, FCC, UL, CCC, EAC, KC-Mark

🧩 Available variants

• Type B – basic model, with tear-off edge

• Type P – model with peeler (automatic label separation device)

• Type C – model with cutter (integrated cutter for continuous labels)

The models are available in combinations: MACH 4.3S (for 104 mm labels) and MACH 4S (up to 108 mm), with resolutions of 203, 300 or 600 dpi.

💡 Main features

• ✅ 4.3″ color touch display with easy-to-use graphical interface

• ✅ Full metal industrial construction – strength and durability

• ✅ Automatic central sensor for detecting any type of label

• ✅ Interchangeable print head (203-600 dpi) – automatically detected by the CPU

• ✅ Front loading of consumables – fast and ergonomic

• ✅ Multiple integrated interfaces – ready for modern networks (USB, LAN, RS232)

• ✅ Full ZPL & cab JScript compatibility – integration into any existing Zebra system

• ✅ Advanced options: cutter, peeler, external re-winder, control panel external control

🧠 Software and compatibility

• cablabel S3 Lite (included) – professional label design

• cablabel S3 Pro (optional) – advanced functions, databases and ERP

• Multiple compatibility: Windows, macOS, Linux, SAP, BarTender, NiceLabel

• Firmware: JScript / ZPL II / abc Basic Compiler

• Direct SAP integration via SAP Printer Vendor Program

🧾 Models available in the CAB MACH 4 / 4S range

MACH4S/300B (5984632) 300 dpi Tear-off 300 mm/s Color LCD

MACH4S/300P (5984636)

Model	Resolution	Type	Max Speed	Display	Features
MACH4/200P (5541092)	203 dpi	Peeler	200 mm/s	LCD	TT/DT, USB, LAN, RS232
MACH4/300C (5541103)	300 dpi	Cutter	200 mm/s	LCD	TT/DT, USB, LAN, RS232
MACH4.3S/200B (5984630)	203 dpi	Tear-off	300 mm/s	Color LCD	TT/DT, USB, LAN, RS232
MACH4.3S/300B (5984631)	300 dpi	Tear-off	300 mm/s	Color LCD	TT/DT, USB, LAN, RS232
MACH4S/600B (5984633)	600 dpi	Tear-off	150 mm/s	Color LCD	TT/DT, USB, LAN, RS232
MACH4S/600C (5984641)	600 dpi	Cutter	150 mm/s	LCD color	TT/DT, USB, LAN, RS232

🏷️ Recommended applications

• Production: batch labels, traceability, packaging

• Logistics: AWB labels, pallets, inventory codes

• Retail: product labels and shelves

• Healthcare: medical, pharmaceutical, laboratory labels

• Electronics: PCB labels, components, wiring

🧩 CAB MACH 4 / 4S Competitive Advantages

✔️ Industrial performance in a compact format ✔️ German quality and exceptional reliability ✔️ Resolution up to 600 dpi for fine details ✔️ Modern interfaces (USB, LAN, RS232, SD, USB Host) ✔️ Integrated ZPL and SAP compatibility ✔️ Flexible configuration options (tear-off, cutter, peeler) ✔️ Low consumption and easy maintenance

The CAB MACH 4 / 4S series offers Industrial performance, exceptional precision and ease of use in a compact format. With speeds of up to 300 mm/s, resolution of 203-600 dpi and intuitive color display, these printers are the ideal choice for professional labeling in manufacturing, logistics, retail and healthcare.

🔄 CAB MACH 4S – the perfect combination of German reliability, smart technology and industrial performance.
