Automatic tape dispenser Start Int. ZCM1000

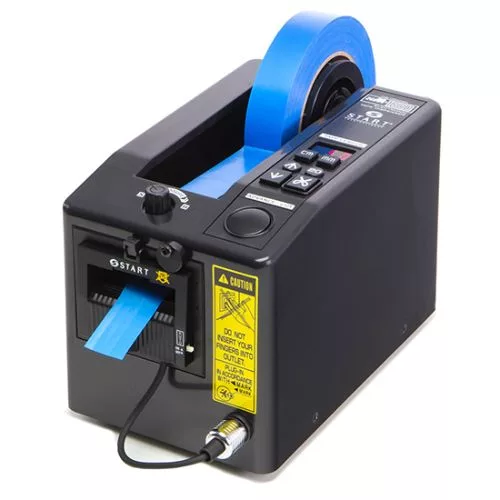

Start International ZCM1000 / M1000 Automatic Tape Dispenser

The Start International ZCM1000 Electric Tape Dispenser, also known as The Original M1000, is an ideal solution for automatic tape cutting and feeding in medium to high-volume industrial applications. Designed to streamline repetitive packaging and labeling processes, this versatile device offers precision and speed in tape cutting.

Key Features:

• Easy Operation:
  • Digital Length Adjustment: Allows quick setting of the desired strip length, ranging from 0.79 to 39 inches (20 to 999 mm), ensuring precise and flexible cutting.
• Versatility:
  • Wide Range of Widths: Accepts strips with widths ranging from 0.28 to 2 inches (7 to 51 mm), covering various cutting needs.
• Performance Reliable:
  • Long Blade Life: With an estimated lifespan of up to 200,000 cuts, the blade is robust and suitable for a variety of tape materials.
• Ease of Use:
  • LED Display: Allows users to adjust the cutting length easily and quickly.
  • Operating Modes: Can operate automatically, via a photocell that detects the tape at the exit, or manually, via a push button.
• Solid Construction:
  • Durable Steel Frame: Built to withstands harsh industrial environments.
  • Flame Retardant and Antistatic Housing: Made from a composite that does not self-ignite at 896°F (480°C).
• Compatibility:
  • Various Roll Sizes: With its 3-in-1 core holder, it can accommodate tape rolls with different core diameters.
• Safety:
  • Enhanced Safety Features: Includes a safety interlock for added protection.

Uses Recommended:

• Production: Ideal for manufacturing plants with tape cutting and dispensing requirements.
• Assembly: Perfect for operations that require precise and uniform tape.
• Packaging: Used for packaging applications that require high-quality tape.

What’s in the box:

• ZCM1000 Electric Tape Dispenser
• Product Manual
• Silicone Oil
• Safety Guard

Specifications Product:

• Model: ZCM1000
• Strip Width: 0.28 to 2 inches (7 to 51 mm)
• Cut Length: 0.79 to 39 inches (20 to 999 mm)
• Maximum Roll Outer Diameter: 7 inches (178 mm)
• Core Holder: 1 inch (25 mm)
• Cut Accuracy: +/- 0.04 inches (1 mm)
• Length Setting: Digital (LED)
• Weight: 5.3 lbs (3.4 kg)
• Dimensions: 9.7 x 5.4 x 5.9 inches (24.5 x 13.7 x 15 cm)
• Electrical Requirements: 117V 50/60Hz, <1 amp (also available in 230V 50/60Hz)
