86” Google EDLA-certified 4K UHD interactive display with PureTouch-IR⁺ touch and Android 14 – iiyama TE8613A-B1AG
2.439,36 € incl. VAT
The IIYAMA TE8613A-B1AG is an 86″ 4K interactive display, Google EDLA certified, with Android 14, PureTouch-IR+, USB-C 100W, WiFi-6, PIR sensors and OPS Slot – ideal for education and professional collaboration.
IIYAMA ProLite TE8613A-B1AG – 86” Interactive Display, 4K UHD, Google EDLA, for Education & Business
iiyama ProLite TE8613A-B1AG is an 86” (85.6”, 217.4 cm) interactive display with 4K UHD resolution, Google EDLA certified, designed for fluid collaboration in modern classrooms, training rooms and corporate environments. Zero-Gap Air Bonding and PureTouch-IR+ with Palm Rejection provide natural and precise writing, and the iiWare 21E (Android 14 – EDLA) platform brings Google apps, iiControl (DMS) for IT management and iiShare/EShare for multi-OS wireless sharing. Next-generation connectivity includes front USB-C 100W (video+data+touch), second USB-C 65W side, HDMI, DP and HDMI out. Front 2×20W audio system with subwoofer completes the experience for medium-large rooms.
Why choose TE8613A
- Google EDLA + Android 14: native Google apps, policies and centralized management via iiControl (DMS).
- Realistic, parallax-free writing: Zero-Gap Air Bonding + PureTouch-IR+ (±1 mm accuracy, 40 touch points, 200 Hz scan, palm rejection).
- One-cable connection: Front USB-C 100W Power Delivery – power your laptop, stream 4K video and touch instantly.
- Multi-OS wireless sharing: iiShare/EShare for Windows, iOS and Android.
- Front audio with subwoofer: excellent clarity for voice and multimedia in medium-large rooms.
- Reliable & easy to manage: PIR and ambient light sensors, components for continuous operation, 5-year warranty.
Recommended scenarios
- Education (K-12, university): interactive lessons, annotations, integration with Google accounts, student-teacher sharing.
- Enterprise & SMB: hybrid meetings, workshops, whiteboard, mirroring and quick access to cloud content.
- Multifunctional spaces: training rooms, project rooms, info-hub – centralized IT control (DMS).
Technical specifications
| Section | Specifications |
|---|---|
| Panel / Image | Diagonal 85.6” (217.4 cm); panel type IPS; 3840×2160 (4K UHD, 16:9); 500 cd/m² brightness; 1200:1 contrast; 8 ms GTG response time; 178°/178° viewing angles; 10-bit (8-bit + FRC), 1.07 billion colors (NTSC ~72%); ≈88% transmittance; ~0.493 mm pixel pitch; 1895 × 1066 mm viewable area. |
| Glass / Touch | Anti-glare glass with anti-gloss treatment and coating antibacterial; Zero-Gap Air Bonding; PureTouch-IR+ technology; up to 40 touch points (10 touch points, 32 touch points on Android); 200 Hz scan; ±1 mm accuracy; methods: stylus, finger, glove; Palm Rejection; USB touch interface. |
| Video inputs | HDMI ×2 (2.0, up to 3840×2160@60 Hz, YUV444; ARC on HDMI #1); DisplayPort ×1 (1.2, 3840×2160@60 Hz); USB-C ×2 – front: USB-C 3.2 Gen1, 5 Gbit, 100W PD; side: USB-C 2.0, 65W PD; both with DP Alt Mode 1.2, 3840×2160@60 Hz, data & touch; 3.5 mm microphone input. |
| Video / Audio Outputs | HDMI out ×1 (2.0, up to 3840×2160@60 Hz, YUV/RGB444, MSD – Multi-Screen Display); S/PDIF optical ×1; 3.5 mm headphones ×1. |
| Audio | Speakers 2 × 20 W (front) + subwoofer 20 W rear. |
| USB / Network & Control | Total USB ×6 (front: 1× USB-C 3.2 Gen1 100W PD, 2× USB-A 3.2 Gen1; side: 1× USB-C 2.0 65W PD, 1× USB-A 2.0, 1× USB-A 3.2 Gen1); RJ45 LAN ×2 (IN/OUT, auto-switch PC & Android, 1000 Mb); RS-232C ×1; HDCP 2.2; OPS Slot ×1 (80-pin; with OPS installed: USB-C front 65W, side 15W). |
| Integrated system | iiWare 21E (Android 14 – EDLA) with iiControl (DMS), WhiteBoard, iiBrowser, file manager, cloud drives, iiShare/EShare (Windows/iOS/Android); Wi-Fi 6 and Bluetooth 5.0. |
| Sensors & Features | PIR sensor (motion), ambient light sensor, Pen Pick-up Sensor, Blue light reducer, Plug&Play DDC2B, OSD key lock, media playback, fanless design. |
| Operation & Reliability | Components 24/7 (recommended up to 18 h/day for optimal longevity); landscape orientation; MTBF 50,000 h (without backlight). |

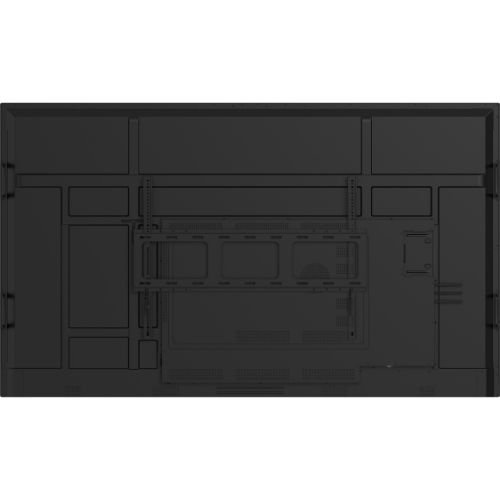

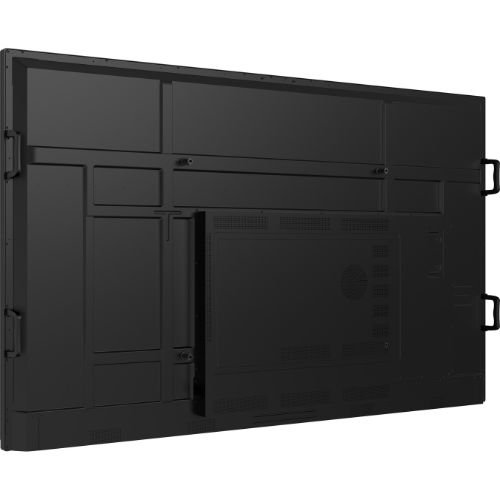

| Mounting & Dimensions | VESA 800×600 mm; metal housing; dimensions ≈ 1950 × 1160 × 95 mm; net weight ≈ 60–65 kg; box: oversized format with protections. |
| Consumption / Power | Internal power supply; AC 100–240 V, 50/60 Hz; power consumption ≈ 220–240 W typical, 0.5 W stand-by, 0.3 W off. |
| Package Contents | Remote control (with batteries), 4× stylus (dual tip), EU/UK power cable (3 m), USB (3 m), HDMI (3 m), VESA wall mount, webcam mount, guides. |
| Compliance / Miscellaneous | CB, CE, TÜV-GS, EAC, RoHS, ErP, WEEE, REACH; Energy Class G; REACH SVHC: Pb; compatible accessories: OPS OPC51204BC-1, MD-CAR2031-B1, MD-WLIFT2031-W1, MD-CART02-S1, UC-CAM120ULB-1, UC-CAM10PRO-1, WP-D003C. |
“The bigger the room, the more the difference of a well-calibrated 86” is felt – for everyone, from the first to the last row.”
Benefits at a glance
- EDLA + Android 14: Google accounts, apps and policies directly on the display.
- USB-C 100W (front): laptop charging + 4K video + touch via a single cable.
- Native wireless sharing: iiShare/EShare for Windows, iOS and Android.
- Front audio with subwoofer: excellent intelligibility for voice and video.
- Centralized management: iiControl (DMS), LAN IN/OUT 1 Gbps, RS-232C network.
FAQ (FAQ)
1) Can I use Google Classroom and Google apps?
Yes, EDLA certification allows the use of Google apps and account logins.
2) Can I connect my laptop with a single cable?
Yes, 100W front USB-C provides power, 4K video, data, and touch.
3) What does Zero-Gap Air Bonding do?
Reduces parallax between the stylus tip and the image, for more natural and accurate writing.
4) Is it suitable for long-term use?
Yes, the components are 24/7; we recommend up to 18 hours/day for optimal lifespan.
5) Can I extend the image onto a second screen?
Yes, HDMI out (4K@60Hz) allows for display expansion.
6) What are the network and control options?
LAN IN/OUT (1 Gbps), Wi-Fi 6, Bluetooth 5.0, RS-232C, plus DMS for management.
7) What’s in the package?
Remote control, 4 styluses, main cables (power/USB/HDMI), wall mount and webcam mount.
8) Is it OPS PC compatible?
Yes, OPS (80-pin) slot – modular PC upgrade; when OPS is installed, PD delivery on the front USB-C it adjusts.
