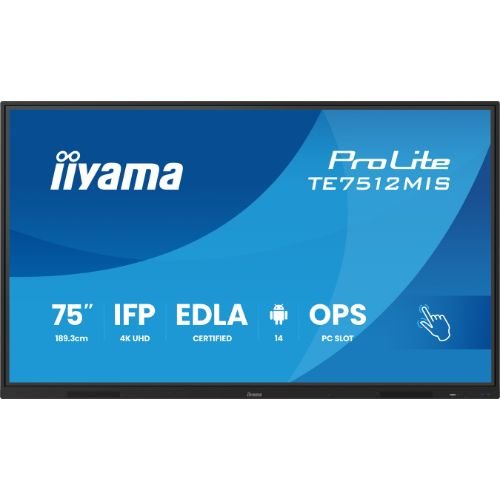

75” 4K UHD interactive display with PureTouch-IR touch, Android 14 and iiWare 13E – iiyama TE7512MIS-B4AG
2.075,15 € incl. VAT
IIYAMA TE7512MIS-B4AG is a 75″ 4K UHD interactive display with Android 14, WiFi 6, PureTouch-IR, USB-C 65W, iiyama Share & DMS, ideal for educational and business collaboration.
IIYAMA ProLite TE7512MIS-B4AG – 75” Interactive Display, 4K UHD, Google EDLA, for Education & Business
iiyama ProLite TE7512MIS-B4AG is a 75” (74.5”, 189.3 cm), 4K UHD, Google EDLA certified interactive display designed for lessons, workshops and hybrid meetings. Zero-Gap Air Bonding eliminates parallax for natural writing, and PureTouch-IR with Palm Rejection provides precise and comfortable control. Runs iiWare 13E (Android 14 – EDLA) with iiyama DMS (centralized management), iiyama Share/EShare for wireless sharing multi-OS and Wi-Fi 6 + Bluetooth connectivity. Modern connectivity includes front USB-C 65W PD (video + data + touch, single cable), another rear USB-C 15W, plus HDMI/DP, HDMI out and LAN IN/OUT 1 Gbps. Front speakers 2×16 W provide solid acoustic coverage for medium-sized rooms.
Why choose TE7512MIS-B4AG
- Google EDLA + Android 14: native Google ecosystem, user profiles and IT management via DMS.
- Realistic, gap-free writing: Zero-Gap Air Bonding + PureTouch-IR (high precision, palm rejection).
- One-cable connection: USB-C 65W PD (front) – charge your laptop, transmit 4K and touch simultaneously.
- Native wireless sharing: iiyama Share / EShare for Windows, iOS and Android.
- Reliable & silent: 24/7 operation, fanless design, metal casing, 5-year warranty.
Recommended scenarios
- Education (K-12 & university): interactive lessons, Google account integration, annotations and content distribution to students.
- Enterprise & SMB: hybrid meetings, brainstorming, whiteboarding, presentations with instant connection via USB-C.
- Multifunctional spaces: training rooms, info-hub, huddle rooms – with centralized management and access policy.
Technical specifications
| Section | Specifications |
|---|---|
| Panel / Image | Diagonal 74.5” (189.3 cm); VA panel DLED; 3840×2160 (4K UHD, 16:9); brightness ≈400 cd/m²; high transmittance (≈92%); high contrast (≈5000:1); response time ≈6.5 ms GTG; viewing angles 178°/178°; colors 1.07 billion (8-bit + FRC); viewable area ≈1650 × 928 mm. |
| Glass / Touch | Anti-Glare Glass, Zero-Gap Air Bonding; PureTouch-IR technology; 40 touch points (multi-user writing), Palm Rejection; fine accuracy (≈±1.5 mm); methods: stylus, finger, glove; USB touch interface. |

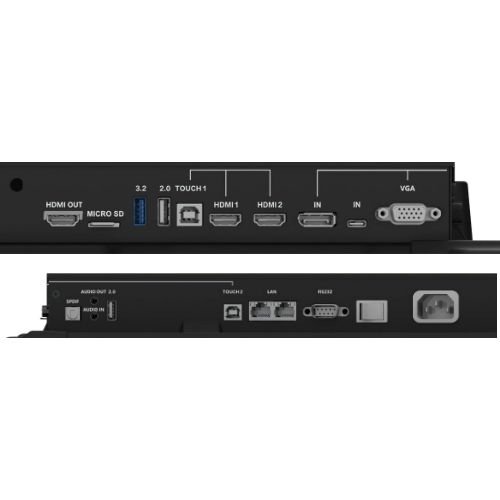

| Video inputs | HDMI ×2 (2.0, up to 3840×2160@60Hz, YUV444; ARC/CEC on HDMI #1); DisplayPort ×1 (up to 3840×2160@60Hz); VGA ×1 (up to 1080p@60Hz); USB-C ×2 (3.2 Gen1, 5 Gbit, 3840×2160@60Hz, DP Alt Mode, touch; front 65W PD, rear 15W PD); Audio in: jack 3.5 mm. |
| Outputs / Audio | HDMI out ×1 (4K@60Hz); Optical S/PDIF ×1; headphones 3.5 mm ×1; speakers 2 × 16 W (front). |
| USB / Network & Control | Total USB up to 5–6 ports (USB-A 3.2 Gen1 on front/side, USB-A 2.0 where applicable); RJ45 LAN ×2 (auto-switch PC & Android, 1000 Mb); LAN Control RJ45 ×1; RS-232C ×1; IR; HDCP on HDMI/USB-C; OPS Slot ×1. |
| Integrated System | iiWare 13E (Android 14 – EDLA) with iiyama DMS, Note, Browser, File Manager, Cloud Drives, WPS Office, iiyama Share & EShare (Windows/iOS/Android); Wi-Fi 6 dual-band, Bluetooth 5.x. |
| Android hardware | High-performance octa-core platform with Mali GPU, 8 GB RAM, 128 GB storage; microSD slot. |
| Features | Kiosk mode, Blue Light Reducer, OSD key lock, Plug&Play DDC2B, media playback, User Profiles, DMS (GDPR-ready); landscape orientation; fanless design. |
| Operation & Reliability | 24/7; MTBF up to 50,000 h (without backlight); typical operating range 0–40 °C. |

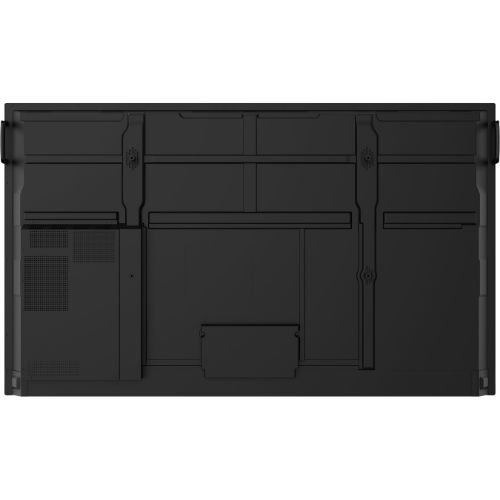

| Mounting & Dimensions | VESA 800×400 mm; metal housing; panel dimensions approx. 1710 × 1016 × 90–100 mm; net weight ≈ 45–55 kg (depending on configuration). |
| Consumption / Power | Power supply Internal; AC 100–240 V, 50/60 Hz; typical consumption ≈ 160–190 W, 0.5 W stand-by, 0.3 W off. |
| Package contents | Remote control (with batteries), 4× stylus (dual tip), cables power/USB/HDMI, guides; some packages include wall mount (check availability). |
| Compliance / Miscellaneous | CB, CE, TÜV-Bauart/GS, EAC, RoHS, ErP, WEEE, REACH; 5-year warranty. |
Benefits at a glance
- EDLA + Android 14: Google apps and accounts directly on the display, ready for schools and businesses.
- USB-C 65W (front): charging + 4K video + touch via a single cable.
- Integrated wireless sharing: iiyama Share/EShare for Windows, iOS, Android.
- Clear & parallax-free image: 4K, 400 nits, Zero-Gap Air Bonding.
- 24/7 reliability: metal housing, fanless design, 5-year warranty.
Frequently asked questions (FAQ)
1) Can I use Google apps (Classroom, Drive, Meet)?
Yes, EDLA certification allows for the installation and use of Google apps with managed accounts.
2) Can I connect my laptop via a single cable?
Yes, USB-C front 65W PD transmits 4K video, data, and touch, and charges your laptop.
3) How many touch points does it have and what accuracy does it offer?
Up to 40 touch points, with palm rejection and fine accuracy for natural writing.
4) Does it have output for a second display?
Yes, HDMI out (4K@60Hz) for display expansion.
5) What network and control options are available?
LAN IN/OUT 1 Gbps, LAN Control, RS-232C, plus DMS for centralized management.
6) Can it run continuously?
Yes, it is designed for 24/7, with usage recommendations to maximize lifespan.
7) What accessories are in the box?
Remote control, 4 styluses, power/USB/HDMI cables and guides; sometimes wall mount (check the package).
8) Is it OPS PC compatible?
Yes, it has OPS slot for modular PC upgrades.
