65” All-in-One PCAP 4K UHD Interactive Display with Android 11, iiSignage² and EShare – iiyama TF6539AS-B1AG
3.645,73 € incl. VAT
The IIYAMA TF6539AS-B1AG is a 65″ 4K UHD PCAP interactive display with Android 11, iiSignage², EShare and edge-to-edge design. Ideal for retail, offices and education. 24/7 operation, flexible mounting, IP65 front.
IIYAMA ProLite TF6539AS-B1AG – 65” PCAP Touchscreen, Android, Open Frame, for retail, self-service & wayfinding
iiyama ProLite TF6539AS-B1AG is a 65” All-in-One touchscreen with PCAP technology (up to 40 points), integrated Android and Open Frame design with edge-to-edge glass, designed for retail, self-service kiosks, wayfinding, hospitality and corporate spaces. The Android 11 platform includes iiSignage² (digital signage CMS), EShare for wireless sharing and FailOver for content continuity. With Touch Through-Glass (up to 6 mm), it can be mounted behind a display case or a protective panel, preserving interactivity. The 4K UHD, 500 nits screen with anti-glare glass delivers excellent readability, and the metal construction, IP65 front and 24/7 mode recommend it for professional projects with extended operating time.
Why choose TF6539AS-B1AG
- All-in-One with Android + CMS: run applications natively and manage content from iiSignage², without an external media player.
- PCAP 40-touch & Through-Glass: fluid interaction, including through glass up to 6 mm, with palm rejection.
- FailOver & Kiosk Mode: automatic switching between sources, always-on display and OSD/IR blocking for public environments.
- Open Frame edge-to-edge: clean integration into furniture, totems, kiosks or showcases.
- Full connectivity: HDMI 2.0 x2, DP 1.2, LAN, RS-232C, USB, Audio out + 2×10 W speakers.
- Industrial reliability: 24/7, IP65 on the front, tempered glass, metal housing.
Scenarios recommended
- Retail & QSR: self-order kiosks, interactive “through-glass” displays, dynamic menus, promo-kiosk.
- Wayfinding & public spaces: interactive maps, info-kiosk, ticketing, museums.
- Corporate & huddle spaces: collaborative tabletop, EShare presentations, information boards.
Technical specifications
| Section | Specifications |
|---|---|
| Panel / Image | Diagonal 65” (≈163.9 cm); IPS/VA LED technology; 3840×2160 @60Hz (4K UHD, 16:9); brightness 500 cd/m² (≈435 cd/m² with touch layer); transmittance ≈87%; contrast up to 1200:1 – 5000:1 (depending on panel sub-variant); response time ≈8–9.5 ms GTG; angles 178°/178°; colors 1.07 billion (8-bit + FRC, NTSC ~72%); AG (anti-glare) glass. |
| Touch (PCAP) | Projected Capacitive (bonded); up to 40 points; palm rejection; accuracy ≈±2.5 mm; Through-Glass up to 6 mm; methods: stylus, finger, glove; USB touch interface. |
| Integrated Platform | Android 11 with iiSignage² (CMS), EShare (mirroring), FailOver, Kiosk Mode (OSD/IR lock). |
| Inputs / Outputs & Control | HDMI ×2 (2.0, up to 4K@60Hz); DisplayPort ×1 (1.2, 4K@60Hz); RJ45 LAN ×1 (control & Internet); RS-232C ×1 (Get/Set); USB-A ×2 (2.0); Audio out 3.5 mm ×1; speakers 2 × 10 W; HDCP 2.2. |
| Features | Anti-image retention, scheduling & timer, DDC2B Plug&Play, Auto Source/FailOver, power-on on return voltage. |

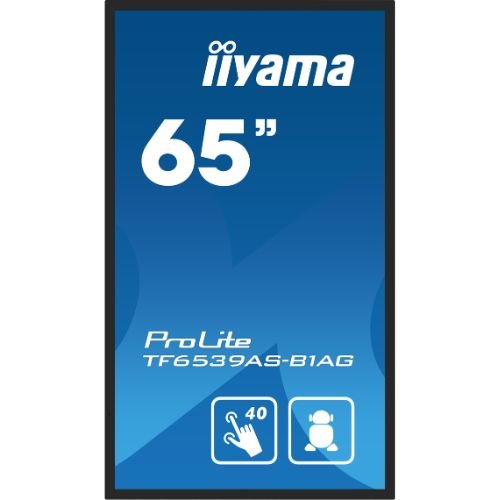

| Orientation | Landscape / Portrait / Face-up (horizontal, vertical, plan). |
| Protection & Mechanical | IP65 front; 3–4 mm tempered glass, 7H hardness, IEC 60950 ball test; metal housing; handles for safe handling. |
| Mounting | Open Frame; VESA 400×400 mm; VESA 100×100 mount for mini-PC (Intel NUC); OMK4-2 bracket (optional); compatible MD-WLIFT2031-W1, MD-CAR2031-B1. |
| Operation & Environment | 24/7; MTBF ~50,000 h (without backlight); operating temperature 0…40 °C; storage −20…60 °C. |
| Power & Power | Internal power supply; AC 100–240 V, 50/60 Hz; typical power consumption ≈160–190 W, 0.5 W stand-by, 0.3 W off; energy class F (according to EU 2017/1369). |
| Dimensions & Weight | Panel dimensions ≈1490 × 865 × 65–70 mm; box ≈1650 × 1010 × 180 mm; net weight ≈40–48 kg, gross ≈47–56 kg (depending on batch/accessories). |

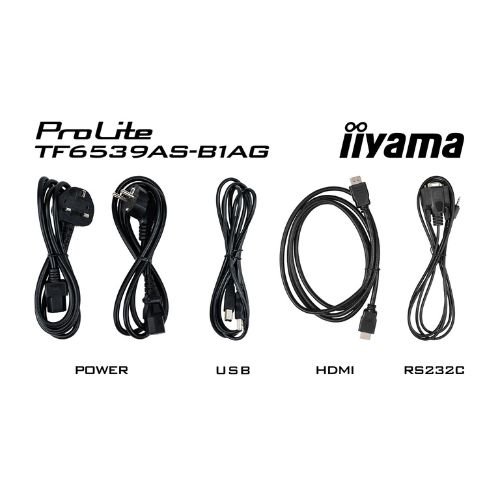

| In the box | Power cable, USB, HDMI; Remote control (with batteries); Cable cover; Quick start guide & Safety guide. |
| Conformity | CB, CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA, cTUVus. |
Benefits at a glance
- Android + iiSignage²: manage playlists, layouts and schedules without an external player.
- PCAP 40-touch & Through-Glass: premium experience and “behind-the-glass” installation.
- Metallic Open Frame: clean integration into furniture/kiosk, easy service.
- FailOver & Kiosk Mode: always-on display, safe in public spaces.
- 4K, 500 nits, anti-glare: excellent clarity and readability for retail & wayfinding.
Frequently Asked Questions (FAQ)
1) Can I install my apps on Android?
Yes, via APK or MDM, depending on the project policy.
2) Does touch work through glass?
Yes, Through-Glass up to 6 mm, ideal for display cases and protective panels.
3) What does FailOver do?
It ensures automatic switching to an alternative source to keep the content on the screen in case of signal loss.
4) Does it support continuous operation?
Yes, it is designed for 24/7 and has IP65 front.
5) Can I connect an external PC or player?
Yes, via HDMI 2.0 or DP 1.2, plus LAN/RS-232C for control.
6) What sound does it offer?
Integrated 2×10 W speakers and Audio out output for external systems.
7) Can it be mounted in a totem or furniture?
Yes, the Open Frame design, VESA 400×400 and brackets for Intel NUC simplify integration.
8) Does it have security features for public spaces?
Yes, Kiosk Mode, OSD/IR lock, schedules and remote control.
