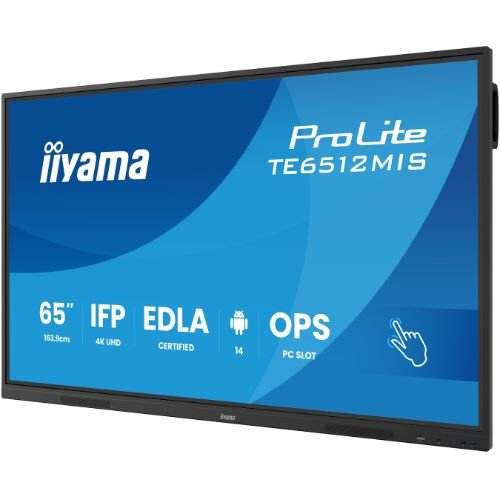

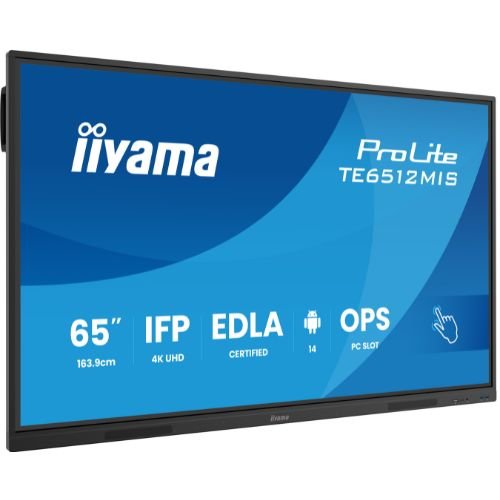

65” 4K UHD interactive display with PureTouch-IR touch, Android 14 and iiWare 13E – iiyama TE6512MIS-B4AG
1.626,24 € incl. VAT
The IIYAMA TE6512MIS-B4AG is a 65” 4K UHD interactive display with Android 14, Zero-Gap Air Bonding, PureTouch-IR, USB-C 65W, WiFi 6, EShare and OPS Slot – ideal for education and business collaboration.
IIYAMA ProLite TE6512MIS-B4AG – 65” Interactive Display, 4K UHD, Google EDLA, for Education & Business
iiyama ProLite TE6512MIS-B4AG is a 65” (64.5”, 163.9 cm), 4K UHD, Google EDLA certified interactive display designed for teaching, training and collaboration in companies. Zero-Gap Air Bonding eliminates parallax, and PureTouch-IR with Palm Rejection provides natural and precise writing. It runs iiWare 13E (Android 14 – EDLA), with iiyama DMS (centralized management), iiyama Share/EShare for multi-OS wireless sharing and modern connectivity Wi-Fi 6 + Bluetooth. Connectivity includes front USB-C 65W PD (video+data+touch) and a rear USB-C 15W, plus HDMI/DP and HDMI out. Front speakers 2×16W provide excellent clarity for small-medium rooms.
Why choose TE6512MIS-B4AG
- Google EDLA + Android 14: Google apps, accounts and policies at the organization level, simple management via DMS.
- Realistic writing: Zero-Gap Air Bonding + PureTouch-IR (±1.5 mm accuracy, palm rejection).
- One-cable connection: USB-C 65W PD (front) – power your laptop, stream 4K video, and touch.
- Native wireless sharing: iiyama Share / EShare for Windows, iOS, and Android.
- Reliable & silent: 24/7 operation, fanless design, metal casing, 5-year warranty.
Recommended scenarios
- Education (K-12 & university): interactive lessons, annotations, access to Google apps, student-teacher sharing.
- Enterprise & SMB: hybrid meetings, workshops, whiteboarding and fast laptop mirroring.
- Multifunctional spaces: training rooms, huddle rooms, info-hub – with centralized IT management.
Technical specifications
| Section | Specifications |
|---|---|
| Panel / Image | Diagonal 65” (163.9 cm); VA DLED panel; 3840×2160 (4K UHD, 16:9); 400 cd/m² brightness; 92% transmittance; 5000:1 contrast (8000:1 dynamic); 6.5 ms GTG response time; 178°/178° viewing angles; 1.07 billion (8-bit + FRC) color; 30–135 kHz H-sync; 1428.5 × 803.5 mm viewable area; 0.372 mm pixel pitch; 16.5 / 16.5 / 16.5 / 45 mm bezel (left/right/top/bottom) 16.5 / 16.5 / 16.5 / 45 mm; black finish matte. |
| Glass / Touch | Anti-Glare, Zero-Gap Air Bonding; PureTouch-IR technology; 40 touch points (5 writing points, HID on OS supported); ±1.5 mm accuracy; methods: stylus, finger, glove; USB interface. |
| Video inputs | VGA ×1 (max. 1920×1080@60Hz); HDMI ×2 (2.0, max. 3840×2160@60Hz, YUV444; ARC/CEC on HDMI #1); DisplayPort ×1 (max. 3840×2160@60Hz); USB-C ×2 (3.2 Gen1, 5 Gbit, 3840×2160@60Hz, DP Alt Mode, touch; front 65W PD, rear 15W PD); Audio in: jack 3.5 mm ×1. |
| Outputs / Audio | HDMI out ×1 (4K@60Hz); S/PDIF optical ×1; 3.5 mm headphone ×1; 2 × 16 W speakers (front). |
| USB / Network & Control | USB total ×5 – front: 2× USB-A 3.2 Gen1 + 1× USB-C 3.2 Gen1 65W PD; side: 2× USB-A 3.2 Gen1; rear: 1× USB-C 2.0 15W PD; RJ45 LAN ×2 (auto-switch PC & Android, 1000 Mb); LAN Control RJ45 ×1; RS-232C ×1; IR ×1; HDCP: HDMI 1 2.1, USB-C 2.2; OPS Slot ×1. |
| Integrated system | iiWare 13E (Android 14 – EDLA) with iiyama DMS, Note, Browser, File Manager, Cloud Drives, WPS Office, iiyama Share & EShare (Windows/iOS/Android); Wi-Fi 6 (2.4/5 GHz), Bluetooth 5.0/4.x/3.0/2.1+EDR. |
| Android hardware | CPU RK3576 – Octa-core (A72×4 + A53×4); Mali-G52 MC3 GPU; RAM 8 GB; storage 128 GB; Micro SD slot. |
| Features | Kiosk mode, Blue Light Reducer, OSD key lock, Plug&Play DDC2B, media playback, iiyama DMS (GDPR-ready), User Profiles for quick login; landscape orientation; fanless design. |
| Operation & Reliability | 24/7; MTBF 50,000 h (without backlight); operating range 0–40 °C; storage −20–60 °C. |
| Mounting & Dimensions | VESA 600×400 mm; metal housing; dimensions 1488 × 897 × 98 mm; box dimensions 1628 × 1014 × 185 mm; net weight 28.5 kg, gross weight 37 kg. |
| Consumption / Power | Internal power supply; AC 100–240 V, 50/60 Hz; consumption 129 W typical, 0.5 W stand-by, 0.3 W off. |
| Package contents | Remote control (with batteries), 4× stylus (dual tip), cables power supply (3 m) / USB (3 m) / HDMI (3 m), quick start guide, safety guide. |
| Compliance / Miscellaneous | CB, CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, EPA 8.0; REACH SVHC: lead >0.1%; EAN 4948570125487. |
Benefits at a glance
- EDLA + Android 14: native Google ecosystem, IT management with DMS.
- USB-C 65W (front): laptop charging + 4K video + touch, single cable.
- Integrated wireless sharing: iiyama Share/EShare for Windows, iOS, Android.
- Clear & parallax-free image: 4K, 400 nits, Zero-Gap Air Bonding.
- 24/7 reliability: metal housing, fanless design, 5-year warranty.
Frequently Asked Questions (FAQ)
1) Can I use Google apps (Classroom, Drive, Meet)?
Yes, EDLA certification allows the use of Google apps and accounts directly on display.
2) Can I connect my laptop with a single cable?
Yes, Front USB-C 65W PD transmits 4K video, data and touch and charges the laptop.
3) How many touch points does it have and how accurate is it?
40 touch points, ±1.5 mm accuracy, with Palm Rejection for comfortable writing.
4) Does it have an output for a second screen?
Yes, HDMI out 4K@60Hz.
5) What network does it support for management?
LAN IN/OUT 1 Gbps with auto-switch between Android and “PC”, plus DMS for management.
6) Is it suitable for extended operation?
Yes, it is designed for 24/7, with fanless design.
7) What is included in the package?
Remote control (batteries included), 4 styluses, power/USB/HDMI cables and guides.
8) Is it OPS PC compatible?
Yes, it has OPS slot for modular PC upgrade.
