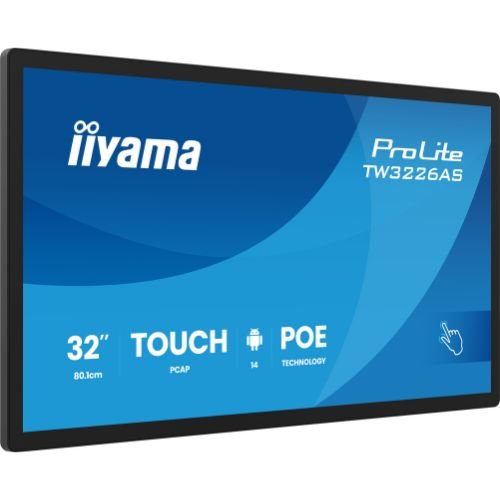

31.5” Touchscreen PC Monitor with Android 14, PoE and iiSignage² – iiyama TW3226AS-B3P
838,53 € incl. VAT
The IIYAMA TW3226AS-B3P is a 31.5″ interactive touch panel with Android 14, 10 touch points, PoE, quad microphone and iiSignage² CMS. Ideal for info points, meeting rooms and modern smart spaces.
IIYAMA ProLite TW3226AS-B3P – 31.5” PCAP Touchscreen, Android 14, PoE (Power over Ethernet), CMS iiSignage²
iiyama ProLite TW3226AS-B3P is a 31.5” All-in-One touch panel PC with 10-touch PCAP, Android 14, PoE (IEEE 802.3bt 85W) and integrated iiSignage², designed for high-traffic spaces: meeting rooms, info-point, hospitality, retail or receptions. Power and data via a single RJ45 cable simplifies installation, while the anti-glare glass and 500 nits (430 nits with touch) panel maintain excellent readability. With a quad-microphone array and 2x5W speakers, the TW3226AS-B3P delivers natural interactions in signage, wayfinding, and fast collaboration scenarios.
Why choose the TW3226AS-B3P
- PoE (Power over Ethernet): power + network on the same cable – clean installation, low costs.
- Android 14 All-in-One: run apps directly on the screen, without an external PC player.
- iiSignage² (CMS) & Kiosk Mode: create, program and secure content for signage.
- PCAP 10-touch: precise touch with finger, stylus or glove (latex).
- Slim, edge-to-edge design: anti-glare glass, VESA 100×100 mounting, landscape/portrait/face-up orientation.
- Complete connectivity: HDMI in, USB-C (video out/touch board), USB-A, LAN, audio, Bluetooth 5.3, Wi-Fi 6 (11ax).
Scenarios recommended
- Meeting rooms & huddle: space reservation, digital whiteboard, agenda display.
- Retail & QSR: digital menus, dynamic promotions, self-help info-kiosk.
- Hospitality & public spaces: wayfinding, check-in, event display.
Technical specifications
| Section | Specifications |
|---|---|
| Panel / Image | Diagonal 31.5” (80.1 cm); VA technology; 1920×1080 @60 Hz (Full HD, 16:9); brightness 500 cd/m² (430 cd/m² with touch); contrast 4000:1; response time 8 ms GTG; angles 178°/178°; colors 16.7 mil. (8-bit); viewable area 698.4 × 392.8 mm; pixel pitch 0.3637 mm; frame matte black; anti-glare. |
| Touch (PCAP) | Projected capacitive, 10 points (HID on supported OS); methods: finger, glove (latex), capacitive stylus; interface USB. |
| Android Platform | Android 14; apps incl.: iiSignage² (CMS), browser, media player, File Manager, Gmail, Google, Calendar, clock/timer, audio recording, Whiteboard (useful apps), Kiosk Mode. |
| Hardware | CPU Rockchip RK3576 – Octa-core (A72×4 + A53×4, up to 2.2 GHz); GPU ARM Mali-G52 MC3; RAM 4 GB LPDDR4X; Storage 32 GB eMMC. |
| Network & Wireless | LAN RJ45 with PoE IEEE 802.3bt (85W); Wi-Fi 6 (IEEE 802.11ax/ac/a/b/g/n); Bluetooth 5.3. |
| Audio & Microphone | Speakers 2 × 5 W; quad-microphone integrated; audio output mini-jack 3.5 mm. |
| Connectivity | HDMI in ×1 (1920×1080@60Hz); USB-C ×1 (video out only + touch board function; DC 5V/900 mA); USB-A ×2 (1× USB 3.2 Gen1 5 Gbit 5V/900 mA, 1× USB 2.0 5V/500 mA); LAN RJ45 ×1 (PoE). |
| Features | Auto-rotation, anti-glare, Kiosk Mode, Flicker-Free, FailOver (via CMS/app), Cable management; Plug&Play DDC2B. |
| Operation | 24/7; MTBF 50,000 h (without backlight); orientation: landscape / portrait / face-up. |
| Mechanical & Mounting | VESA 100×100 mm; slim housing; wall mounting accessories included (cover, screws, dowels, level, pads EVA). |
| Power & Consumption | External power supply; DC 12 V power supply; 36.34 W typical consumption, 0.5 W stand-by, 0.3 W off. |
| Dimensions & Weight | 735 × 436 × 35 mm; box 833 × 508 × 126 mm; net weight 7.7 kg, gross 12.4 kg. |
| Package | AC adapter, power cord, quick start guide, safety guide, cable cover; wall mount with accessories. |
| Compliance / Miscellaneous | CE, EAC, RoHS, ErP, WEEE, REACH, UKCA; REACH SVHC: Lead >0.1%; EAN 4948570125708. |
Benefits at a glance
- Easy installation via PoE: a single cable for data and power.
- Android 14 + integrated CMS: run applications, control content, schedule campaigns.
- PCAP 10-touch: fast and precise touch experience.
- 24/7 & Kiosk Mode: reliable for public spaces, with security settings.
- Balanced connectivity: HDMI, USB-C (video out/touch board), USB-A, LAN, audio.
Frequently Asked Questions (FAQ)
1) Can I power and connect the network on the same cable?
Yes, through PoE (IEEE 802.3bt) you get power and network on a single RJ45 cable.
2) Can I install custom apps on Android 14?
Yes, you can install apps and manage the device through MDM/EMM solutions, if applicable.
3) Does it support kiosk mode and content scheduling?
Yes, it has Kiosk Mode, and through iiSignage² you can set playlists, layouts and schedules.
4) Does the touch work with gloves?
Yes, with latex glove and stylus capacitive.
5) Can it be easily mounted on a wall or stand?
Yes, it has VESA 100×100 mm and comes with a mounting kit.
6) Can I output an image to USB-C?
Yes, the USB-C port offers video out (and connection to the touchpad), along with HDMI in for external sources.
