3″ mobile printer B-FP3D Toshiba B-FP3D-GH52-QM-R

Toshiba B-FP3D-GH52-QM-R – 3 inch mobile printer with Peel-off, Bluetooth and WLAN

The Toshiba B-FP3D-GH52-QM-R is a professional mobile printer from the B-FP3D series, designed for companies that need fast and reliable printing directly in the field. This model is part of the Plus range and is suitable for logistics, courier, retail, deliveries, ticketing and mobile labeling, where operators need to print labels or receipts without being dependent on a fixed workstation. The Plus configuration brings important advantages for label applications, including Peel-off and label sensors , which help with fast label peeling and more accurate use in mobile workflows.

The Toshiba B-FP3D-GH52-QM-R model uses Direct Thermal technology and a Flat Head printhead , printing at 203 dpi at a speed of up to 152 mm/s (6 ips) . The maximum print width is 72 mm , and the maximum length reaches up to 995 mm in batch mode . For peel-off mode, the recommended length is 8 – 58 mm . These features make it suitable for logistics labels, shelf markings, price labels, receipts and delivery documents issued directly at the work point.

• 3 inch direct thermal mobile printer
• Plus model with Peel-off and label sensors
• Resolution 203 dpi
• Print speed up to 6 ips
• USB, Bluetooth and dual-band WLAN connectivity
• Graphical color display for intuitive operation
• Good resistance for field use
• Ideal for retail, logistics, courier and mobile applications

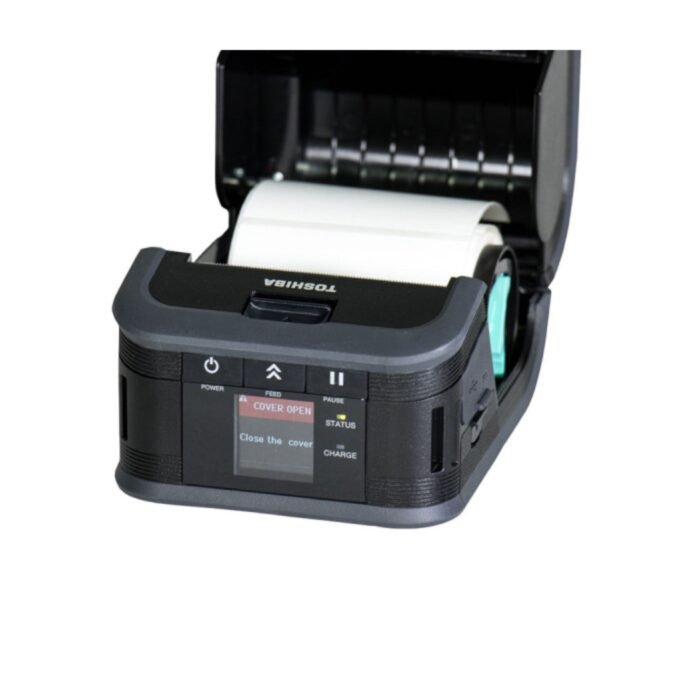

The printer has a 128 x 128 pixel graphic color display , two status LEDs and three operating keys, providing a clear and easy-to-control experience even in demanding environments. The compact housing, the weight of approximately 660 g with battery and the 7.4 V, 2500 mAh Li-ion battery contribute to a good balance between autonomy and portability. In addition, the GH52 model benefits from dual-band WLAN 2.4 GHz / 5 GHz together with Bluetooth, which recommends it for flexible integration into modern mobile infrastructures.

Toshiba B-FP3D-GH52-QM-R supports languages and emulations such as ZPL II, CPCL, TPCL, LABEL, RECEIPT, ESC/POS and BCI , depending on the series documentation and implementation. The printer is compatible with label, receipt and tag media, supports media widths up to 80 mm and is built for intensive use in the field, with drop resistance up to 1.6 meters and IP54 compliance for Plus models, except for the paper path. In the description you sent, the model also includes NFC , useful for quick pairing and simplified integration in mobile scenarios.

Main advantages

• Plus model optimized for mobile tags
• Peel-off for quick label removal
• Bluetooth and dual-band WLAN for flexible connectivity
• Color screen for easy operation
• Crisp 203 dpi resolution
• Compact and durable construction for field work

Technical specifications

The difference between Near-Edge and Flat Head

The Toshiba B-FP3D-GH52-QM-R uses a Flat Head printhead. This technology is appreciated for its good compatibility with various materials and stable operation in direct thermal applications. In comparison, Near-Edge technology is more common in thermal transfer applications oriented towards very high speeds and better ribbon efficiency. For a mobile direct thermal printer like the B-FP3D-GH52-QM-R, choosing a Flat Head printhead is appropriate because it emphasizes reliability, clarity and predictable operation in daily use.
